10.4" Anti-glare PCAP Touch Screen with Narrow Bezel in Black for Medeical Touch Control Panels

Brand Name:	LB
Model Number:	LBCTP104011-8259V4
MOQ:	50 Pcs
Price:	to be determined
Packaging Details:	Carton Box or Wood Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS

Touch Technology:

Projected Capacitive Touch

Surface Treatment:

Anti-glare

Thickness:

2.9±0.2mm

Response Time:

Screen Size:

10.4 Inch

Othere Name:

Touch Glass

Touch Resolution:

Automatically Match The Display Resolution

Layers:

Supply Ability:

1000pcs per day

Highlight:

10.4in PCAP Touch Screen

Anti Glare PCAP Touch Screen

10ms pcap display

Product Description

10.4" Anti-glare PCAP Touch Screen with Narrow Bezel in Black for Medeical Touch Control Panels

Product Description of 10.4" AG Touch Glass:

The PCAP Touch Screen LBCTP104011-8259V4 has an Anti-Glare Front Glass optically bonded on the multi-touch sensor, working with ILI2511 touch controller via USB interface. It uses Projected Capacitive Touch Screen technology, which is a type of touch screen that offers superior accuracy and sensitivity. This technology works by detecting the capacitance changes in a conductive object, such as a finger or stylus, when it comes into contact with the screen. This allows for precise and accurate touch input, making it an ideal choice for applications that require high precision, such as medical equipment or industrial automation.

This PCAP Touch Screen is a versatile and reliable touch screen technology that offers advanced touch capabilities for a variety of applications. With its ILI 2511 touch controller and easy-to-install package, it is an ideal choice for industrial and medical applications that require high precision and durability.

Feature of 10.4" AG Touch Glass:

- Narrow bezel in black;
- Anti-glare Surface Treatment;
- Multi-touch with USB interface;
- Glass-on-glass structure;

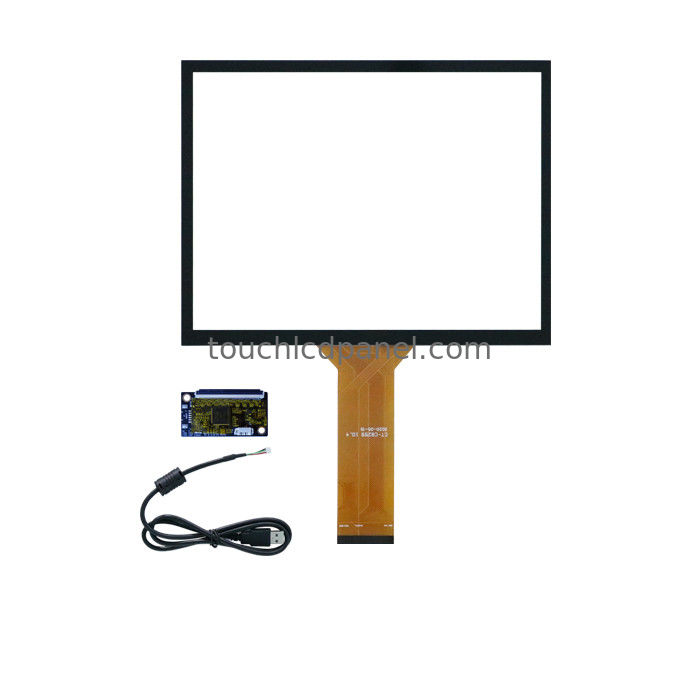

- Touch Glass + Touch Controller + USB Cable
- Automatically match the resolution of Display Panel

Technical Parameters:

Size	10.4"
Model Number	LBCTP104011-8259V4
Surface Treatment	Anti-glare
Application	ATM, POS, Open Frame Machine, etc.
Response Time	10ms
Touch Technology	Projected Capacitive Touch
Touch Points	Up to 10 points if necessary
Thickness	2.9±0.2mm
Layers	G+G
Transparency Rate	≥85%
Other Name	Touch Glass
Touch Resolution	Automatically match the display resolution
Surface Treatment	Anti-glare

Keywords: Anti-glare Surface Treatment, Multi-Touch Glass, ILITEK Touch Contrller

10.4" Anti-glare PCAP Touch Screen with Narrow Bezel in Black for Medeical Touch Control Panels 0

Applications:

Some of the product application occasions and scenarios for the LBCTP104011-8259V4 PCAP Touch Screen include:

Industria Control Panel
Medical Control Panel
Touch with Latex Gloved Hand
With Glare Environment
Information kiosks in malls and public spaces
Retail stores for product information and promotion
Industrial control systems in factories and manufacturing plants
Medical equipment for patient monitoring and data input
Gaming and entertainment systems

In conclusion, the LB LBCTP104011-8259V4 PCAP Touch Screen is a versatile product that can be used in various applications and scenarios. Its fast response time, high accuracy, and affordability make it an ideal choice for both small and large scale operations.
