11.6-inch ILITEK2511 Glass-on-glass Projected Capacitive Touch Screen Overlay for Industrial and Medcial Control Panels

Brand Name:	LB
Model Number:	LBCTP116011
MOQ:	100 Pcs
Price:	To be negotiated
Packaging Details:	Carton Box or Wood Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS

Document:

Input:

Capacitive Pen Or Hand Writing

Touch Technology:

Projected Capacitive Touch

Thickness:

1.6±0.2mm

Transparency Rate:

Othere Name:

Touch Glass

Response Time:

Application:

ATM.POS.Open Frame Machine ...etc

Aspect Ratio:

Supply Ability:

2000pcs per day

Highlight:

16:9 PCAP Touch Screen

11.6in PCAP Touch Screen

10ms projected capacitive touch screen

Product Description

11.6-inch ILITEK2511 Glass-on-glass Projected Capacitive Touch Screen Overlay for Industrial and Medcial Control Panels

Product Description:

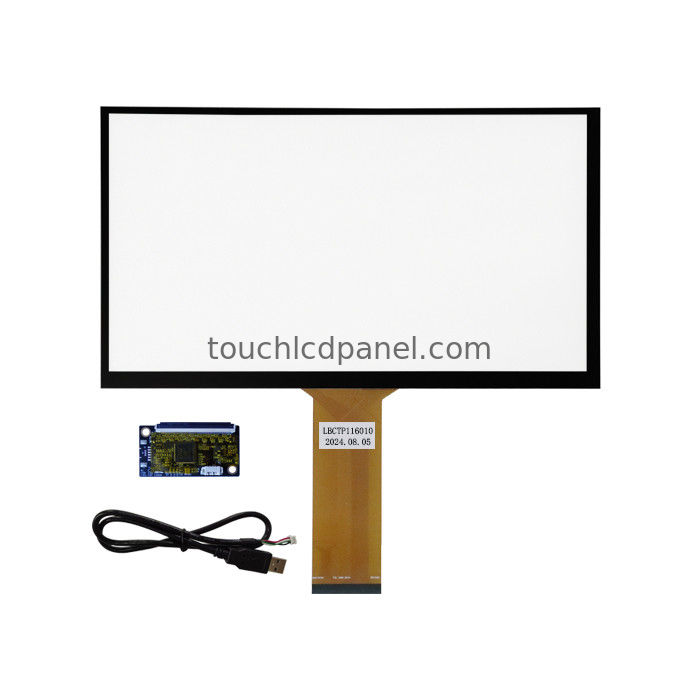

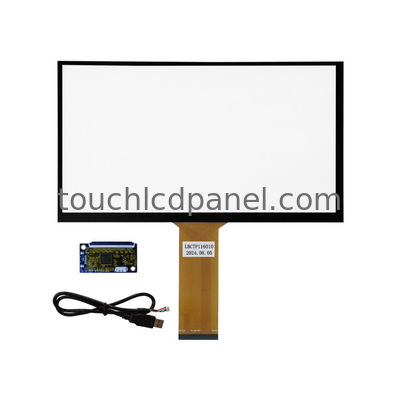

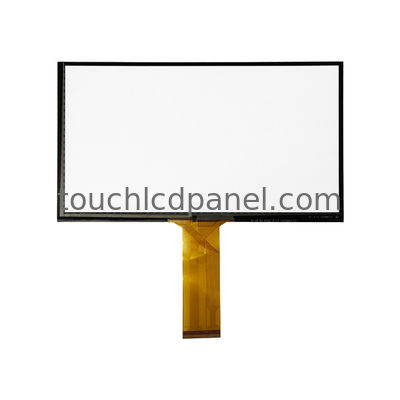

This 11.6-inch PCAP Touch Screen Overlay is a glass-on-glass solution with ILITEK2511 touch controller. It provides a high level of accuracy, sensitivity, and durability. It is designed to work with both bare fingers and medical latex gloves, making it ideal for use in a wide range of environments. The touch screen has a transparency rate of ≥85%, which ensures that the display is clear and easy to read.

The outline dimension of the PCAP Touch Screen is 268.5*158.7mm, which is very close to the LCD module, making it easy to install and use. The touch screen is compatible with a wide range of devices, including industrila and medical tablets. The touch screen is also compatible with different operating systems, including Windows and Android.

Features:

Glass-on-glass solution, ITO techonlogy touch sensor optically bonded with chemically tempered cover glass with surface hardness of greater than 6H.
Thin and Light-weight: totally thickness is 1.6mm
Touch Controller: ILITEK 2511, it has USB, IIC and RS232 ports for option
Multi-touch: upto 10 points finger touch, gloved hand touch.

Technical Parameters:

Parameter	Value
Cover Lens	Chemically Tempered Glass 0.7mm
Transparency Rate	≥85%
Touch Technology	Projected Capacitive Touch
Aspect Ratio	16:9
Touch Warranty	1 Year
Input	Capacitive Pen Or Hand Writing
Touch Resolution	1920x1080
Layers	G+G
Application	industrial and medical touch tablets, and etc.
Thickness	1.6±0.2mm
Outline Dimension	268.5*158.7mm

Applications:

The LB LBCTP116011 is a high-quality projected capacitive touch screen designed for various applications. It is manufactured in China and certified by CE/ROHS, ensuring that it meets international standards.

One of the advantages of the LBCTP116011 is its compatibility with various applications, such as ATM, POS, open frame machine, medical monitors, industrial controll panels and more. It is suitable for industrial, medical and commercial use, making it a versatile product.

Customization:

Cover Glass can be customized as per your specific needs, dimension, logo, thickness, color and etc.

Touch Function can be customized to support 8mm thickness glass and glovde hand touch.

More details, welcome to contact us to discuss further via emai alex.lb@touchlcdpanel.com
