Product Description of DV190E0M-N11:

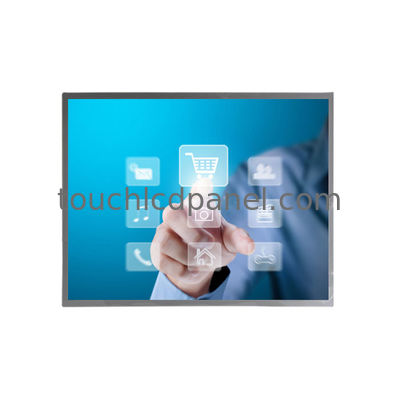

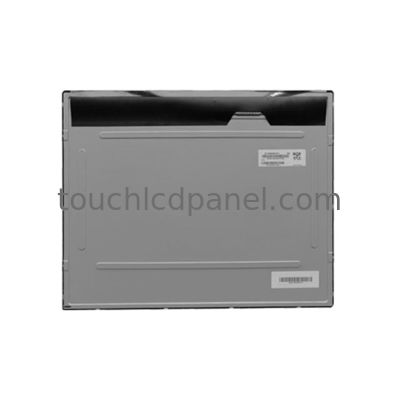

This LCD module DV190E0M-N11 is from BOE with 2 ports LVDS interface, 1280x1024 resolution and 250nits brightess, full viewing angles and 72% color gamut. Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M colors. The TFT-LCD MDL panel is adapted for a low reflection and higher color type.

Introducing the Liquid Crystal Display Panel, also known as LCD Panel. This TFT-LCD Panel has a contrast ratio of 1000:1 and is designed to operate within a temperature range of 0 ~ 50 °C. Its panel type is A-Si, TFT-LCD, LCM and its storage temperature ranges from -20 ~ 60 °C. The interface type of this LCD Panel is LVDS.

Overall, our LCD Panel is a must-have for anyone who requires a high-quality display that is both reliable and long-lasting. With its exceptional performance and sleek design, it is the perfect addition to any workspace, home, or gaming setup. Get yours today and experience the difference!

Features of DV190E0M-N11:

• Product Name: TFT-LCD Module
• Operating Temperature: 0 ~ 50 °C
• Panel Type: A-Si, TFT-LCD, LCM
• Contrast Ratio: 1000:1
• Resolution: 1280x1024
• Interface Type: LVDS

Technical Parameters of DV190E0M-N11:

This table describes technical parameters of a TFT-LCD Panel which is also known as a Flat Panel Display. It has a resolution of 1280*1024 and a contrast ratio of 1000:1. The interface type is LVDS and it has 16.7M display colors. The brightness is 250 Cd/m² and the viewing angle is 89/89/89/89. The LED Life Time is 30000H and the outline size is 396(W)×324(H)×10.4(D) Mm. The product is guaranteed for 2 years.

PCAP Touchscreen Overlay is for Option : multi-touch, ILITEK touch controller with USB interface.

Applications:

The BOE DV190E0M-N11 LCD Panel is a display panel that uses active matrix display technology with a thin film transistor display. It has a panel size of 19 inches and an interface type of LVDS. This LCD panel is made in China. It can be packaged in either a carton box or wood case for shipping. Delivery time ranges from 3 to 20 working days. The BOE DV190E0M-N11 LCD Panel is suitable for a variety of product application occasions and scenarios:

• Commercial Digital Display
• Display Terminals for Control System
• Landscape and Portrait Display
• Desktop Monitors
• Digital Signage Displays
• Gaming Displays
• Medical Devices
• Industrial Equipment

Support and Services:

Our Product Technical Support and Services for the LCD Panel product include:

- Troubleshooting assistance for any technical issues that arise with the product

- Repair and replacement services for defective LCD Panels

- Technical documentation and resources, including user manuals and data sheets

-  Brightness can be enhanced to 1000nits on request

-  Touch or Glass can be added on top of it on request

-  Accessories like LVDS Cable, or HDMI/VGA Board can be supplied on request
