21.3 Inch PCAP Touch Screen with Black Bezel for G213UAN01.1 LCD Panel
  • name
  • name

21.3 Inch PCAP Touch Screen with Black Bezel for G213UAN01.1 LCD Panel

Brand Name: LB
Model Number: LBCTP213010
MOQ: 5pcs
Price: To Be Determined
Packaging Details: Carton Box
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Certification:
CE/ROHS
Bezel Width:
24/24/24/24mm
Total Thickness:
2.9mm
Sensor Glass Thickness:
0.7mm
Matching LCD Panel:
G213UAN01.1
Resolution:
1600x1200 Pixels
Model No.:
LBCTP213010
Touch Controller:
ILITEK
Item:
Mutli-touch Overlay
Supply Ability:
500pcs Per Day
Highlight:

resistive touch panel for G213UAN01.1

,

480x372mm resistive touch screen

,

PCAP touch screen with outline dimension

Product Description

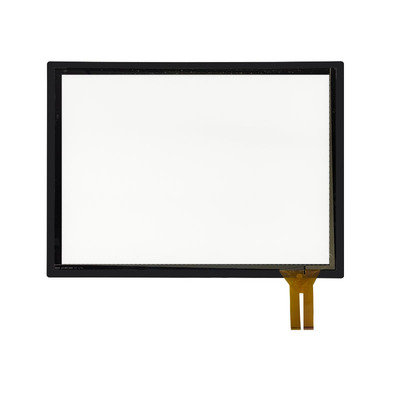

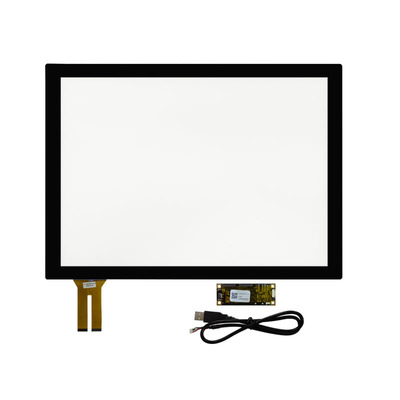

21.3 Inch PCAP Touch Screen with Black Bezel for G213UAN01.1 LCD Panel
Product Overview of 21.3 Inch PCAP Touchscreen Overlay
This 21.3 inch PCAP touchscreen overlay is glass on glass solution. It is driven by ILITEK touch controller, supporting muti-touch. The PCAP Touch Screen is a cutting-edge touch screen technology offering seamless interaction for various applications, mainly for medical equipment, outdoor applications, industrial devices. Designed specifically for the G213UAN01.1 LCD Panel, this 21.3" touch screen combines performance with aesthetics, featuring a sleek black bezel that enhances visual appeal, and easier for flush mount.
Key Features
  • Model: LBCTP213010
  • Compatibility: G213UAN01.1 LCD Panel
  • Structure: Front Glass On Sensor Glass
  • Bezel: Black (24mm uniform width)
  • Technology: Projected Capacitive Touch (PCAP)
  • Multi-Touch: Supports gestures, swipes, and pinches
  • Interface: USB connectivity
  • Certifications: CE/ROHS compliant
Technical Specifications
Parameter Value
Model Number LBCTP213010
Size 21.3"
View Area 432x324mm
Outline Dimension 480x372mm
Black Bezel 24/24/24/24mm
Glass Thickness 2.0mm (Front), 0.7mm (Sensor)
Total Thickness 2.9mm
Aspect Ratio 4:3
Resolution 1600x1200 Pixels
Touch Interface USB
21.3 Inch PCAP Touch Screen with Black Bezel for G213UAN01.1 LCD Panel 0
Applications
This versatile touch screen is ideal for retail kiosks, educational displays, corporate presentations, and industrial control panels, medical equipment, outdoor high brightness devices and etc. Its high sensitivity and optical touch technology provide reliable performance in demanding environments.
Ordering Information
  • MOQ: 5 pieces
  • Delivery: 3-20 working days
  • Packaging: Sturdy carton box
  • Payment: T/T accepted
  • Production Capacity: 500pcs/day
