10.1" PCAP Touch Screen with IIC Interface and 216.96x135.6mm Active Area

Brand Name:	LB
Model Number:	LBCTP101130-1095V2
MOQ:	100pcs
Price:	To Be Determined
Packaging Details:	Carton Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE/ROHS

Touch Sensor:

ITO Glass

Layers:

Front Glass On Touch Sensor Glass

Active Area:

216.96x135.6mm

Touch Interface:

Size:

10.1"

Touch Technology:

Projected Capactive Touch

Touch Point:

Multi-touch

Resolution:

1920x1200, 1280x800

Supply Ability:

500pcs Per Day

Highlight:

10.1 inch PCAP touch screen

PCAP touch screen with IIC interface

216.96x135.6mm active area touch screen

Product Description

10.1" Multi-touch PCAP Touch Screen IIC Interface with GT928 Touch Controller

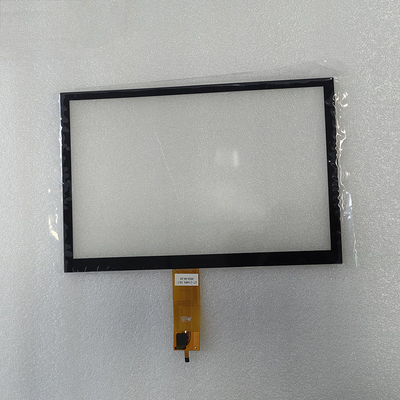

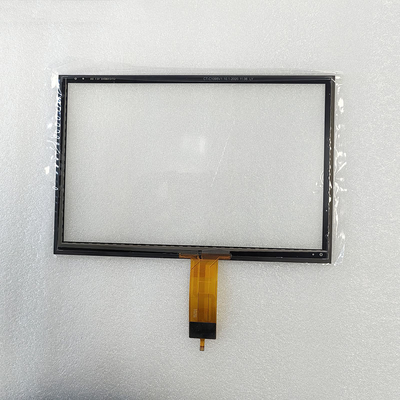

LBCTP101130-1095V2 is a PCAP Touchscreen Glass, featuring chemically tempered glass bonded on ITO touch sensor glass, driven by GT928 touch controller via IIC interface. It supports multi-touch functionality on LCD panels with 16:10 aspect ratio and adjustable resolution of 1920x1200 or 1280x800 pixels.

Utilizing ITO Glass as the touch sensor, this PCAP Touch Screen delivers precise touch detection with pressure-free finger touch operation. The 10ms rapid response time ensures minimal input lag for smooth interaction in gaming, drawing, or menu navigation applications.

The surface hardness of >6H provides exceptional durability and scratch resistance, maintaining clarity and responsiveness through extended daily use. The force-sensitive technology detects even light touches with high accuracy for precise control.

Key Features

Product Name: 10.1" PCAP Touch Screen Overlay
FPC: 6-pin 0.5 Pitch FPC
Layers: Front Glass On Touch Sensor Glass
Size: 10.1"
Active Area: 216.96x135.6mm
Resolution: 1920x1200 or 1280x800
Aspect Ratio: 16:10

Technical Specifications

Parameter	Value
Size	10.1"
Outline	233.53x153.95mm
Active Area	216.96x135.6mm
Resolution	1920x1200, 1280x800
Touch Interface	IIC
Bezel Color	Black
Touch Sensor	ITO Glass
Touch Points	Multi-touch
Front Glass	Chemically Tempered Glass
Touch Controller	GT928
Touch Technology	Projected Capacitive Touch
FPC	6-pin 0.5 Pitch FPC

Applications

The LBCTP101130-1095V2 PCAP Touch Screen is designed for diverse industrial and commercial applications:

Retail POS systems and interactive kiosks
Educational interactive displays and collaborative tools
Industrial control systems and HMI interfaces
Digital signage and information displays
Gaming and entertainment systems

Its projected capacitive touch technology delivers responsive performance for precise input across all applications, from light touch navigation to intensive industrial use.
