Plug And Play 7 Inch Touch PCAP Screen With USB Controller For Touch Control Panel

Brand Name: LB
Model Number: LBCTP070030
MOQ: 50 Pcs
Price: 15USD/PCS ~ 30USD/PCS
Packaging Details: Carton Box or Wood Case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE/ROHS
Screen Size:
7.0"
Interface:
USB-A
Resolution:
1024x600; 800x480
Layers:
Cover Glass On Sensor Glass
Touch Controller:
ILITEK 2511
Thickness:
2mm
Supply Ability:
2000pcs per day
Highlight:

Touch pcap screen

,

7in pcap screen

,

2mm pcap lcd

Product Description
Plug-and-play 7-inch PCAP Touch Screen With USB Controller for Touch Control Panel

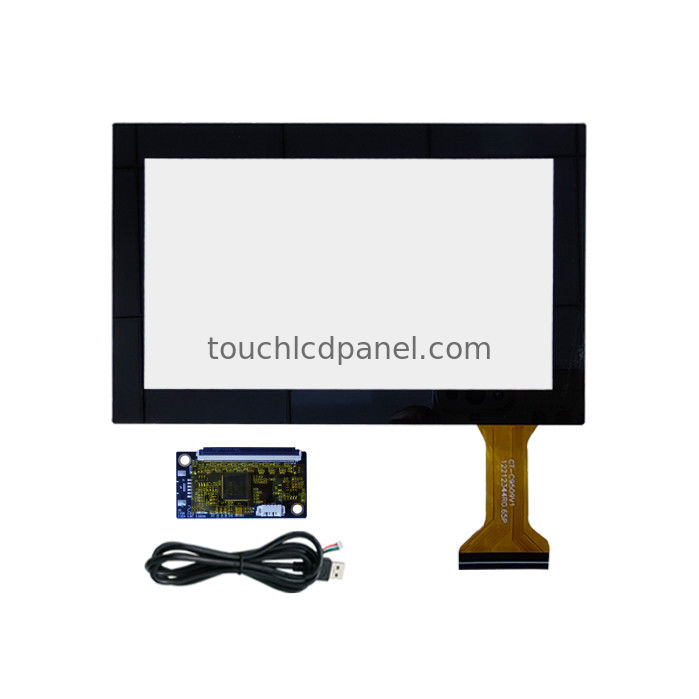

LBCTP070030 is a 7-inch projected capacitive (PCAP) touch screen, driven by a touch controller from ILITEK, via USB interface. It is plug-and-play on Windows, Android and Linux, supporting multi-touch up to 10 points. We provide the touch screen together with the touch controller and USB cable. You can use it directly after connecting them correctly with your mainboard.

It is glass-on-glass touchscreen solution. The top layer is chemically strengthened cover glass, and the touch sensor glass is ITO technology. They are optically bonded together with a kind of optical clear adhesive, which is of high transmittance. The glass surface hardness reaches above 6H pencil hardness and the transmittance goes up to 86%.

It works fine with those display panels which has the corresponding active area 154.08x85.92mm, and the resolution is 1024x600pixels and 800x480pixels. Exactly, the resolution is automatically recognized by touch controller. It will be working correctly on Windows and Android operating systems, only if the active area correctly matches the viewing area of the touch screen. That is why this touch panel is plug-and-play.

This touch panel is designed horizontally, and it can be also installed vertically via upgrading the firmware. Please let us know ahead of time if you are going to install the touch screen vertically.

Product Name LBCTP070030
Screen Size 7"
Interface USB-A
Resolution 1024*600,800*480
Layers Cover Glass on Sensor Glass
Touch Controller ILITEK 2511
Color Black
Touch Area 154.88*86.72mm
Outline Dimens 179.61*113.46mm
Total Thickness 2mm
Cover Lens Thickenss 1.1mm
Transmittance 86%
Touch Points Multi-touch

Besides, here is another version (LBCTP070040) for option. The active area is the same, 154.08x85.92mm, and the outline dimension is smaller to be 164.9 x 100mm, which is almost the same outline with that of the LCD panel.

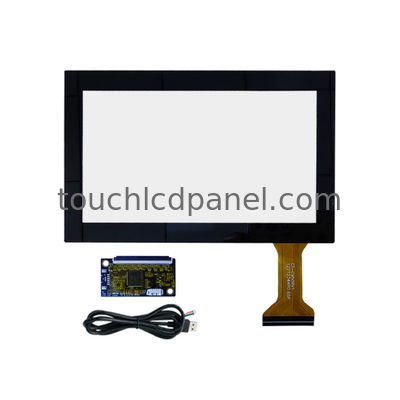

LBCTP070030&LBCTP070040 touch panel kit include the touch panel, touch controller and USB cable. USB-A is the most common USB interface for mainboard with Android or Windows operating system. Sometimes, you may need USB-B or USB-C interface to connect the touch controller to the mainboard, which we can also provide.
