LB MNT101LB01 10.1" Projected Capacitive Multi Touch Monitor For Windows Android

Brand Name: LB
Model Number: MNT101LB01
MOQ: 50 Pcs
Price: 80USD/PCS ~ 150USD/PCS
Packaging Details: Carton Box or Wood Case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE/ROHS
Material:
Glass + Plastic Frame + Metal
Color:
Black Bezel
Touch Interface:
USB-HID, 5V DC
Display Port:
HDMI / VGA
Power Supply:
12V DC
Touch Points:
10 Points Finger Touch
Resolution:
1280x800
Brightness:
400nits
Surface Hardness:
6H
Viewing Angles:
85/85/85/85
Supply Ability:
300pcs per day
Highlight:

Projected Touchscreen Monitor

,

Capacitive Touchscreen Monitor

,

10.1in multi touch monitor

Product Description

LB MNT101LB01 10.1" Projected Capacitive Multi-Touch Monitor For Windows/Android



MNT101LB01 is LB's standard 10.1 inches embedded multi-touch monitor. It is widescreen with high definition and wide viewing angles, vividly displaying the colors. It supports multi-touch, compatible with Windows, Android operating systems via USB interface. It supports multi-touch, up to 10 points, though for such small touchscreen monitors, five touch points is enough. The touch responds fast with excellent sensitivity in 3~10ms.

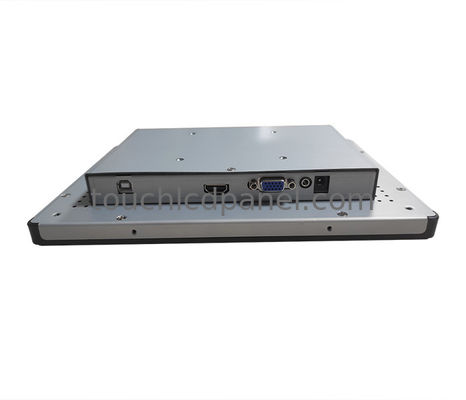

We use projected capacitive technology to replace the resisitive touch panel. The display is via HDMI or VGA or DP port. Both the touch and display are driver free. It is plug-and-play. It is powered by 12V DC input voltage. It can be installed flatly in your enclosure with the plastic middle frame, which is the mainstrean assemblage of touch monitor. It also has VESA MIS-D holes for wall mount or desktop stand.



Display Active Area 10.1-inch Diagonally
Display Ratio 16:10
LED Life-Time 15000 Hours (Min.)
Resolution 1280*800 pixels
Brightness 400cd/㎡(Typ.)
Contrast Ratio 800:1
Viewing Angle 85/85/85/85
Interface HDMI/VGA
Touch Touch Type PCAP Touch
Touch Points 10 Points
Interface USB_A to USB_B
OS Compatibility Windows/Android/Linux
Power Display Power Supply DC12V 2A, DC5.5x2.1mm
Touch Power Supply DC5V, USB-A
Work Cond. Operating Temperature 0～50℃,Indoor
Storage Temperature 0～50℃,Indoor
Packing Info Net Weight 1.5KG
Outline Dimension 260mm*170.8mm*40.8mm
Accessory 1.2m USB Cable
Quantity/CTN 6pcs/CTN



Customization Service



1. The standard touch monitor is mainly for indoor application. If the environment has strong light, the brightness is recommended to be 1000nits typically.



2. For outdoor equipment installed outside, the sun and the rain will always make the ordinary products fail. Our solution is to use high brightness LCD panel with extended operating temperature for the display. And anti-UV ink and anti-glare for the front glass. And for the touch screen, it must be anti-UV, therefore the adhesive tape for laminating the touch to the front glass has the feature of anti-UV. Besides, the touch must support touch in the rain.



Feel free to contact our engineer to discuss further about touch screen.
