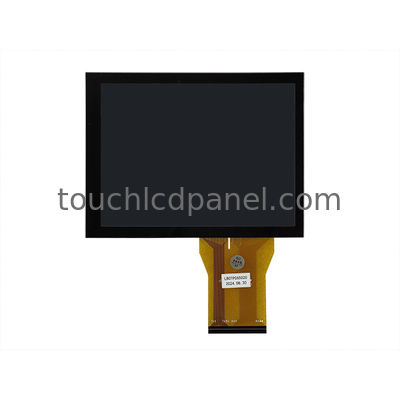

6.5 Inch 640 X 480 1000:1 Contrast Capacitive Touch LCD Panel With 178 Degrees Viewing Angle
country of origin
China
Brand Name
LB
certificate
CE/ROHS
PRODUCT MODEL
TDM065LB0101
MOQ
50 Pcs
unit price
to be determined
Packing
Carton Box or Wood Case
period for dispatch
3~20 working days
payment method
T/T
Supply Capacity
1000pcs per day
Product Custom Attributes
Highlight
640 X 480 Touch LCD Panel
,6.5in Touch LCD Panel
,LVDS capacitive touch screen lcd
Viewing Angle:
178 Degrees
Interface:
LVDS
Touch Technology:
Capacitive
Backlight Type:
LED
Contrast Ratio:
1000:1
Touch Area:
133.48*100.36mm
Size:
6.5 Inches
Operating Temperature:
-30~80 Degrees Celsius
Product Description
6.5-inch Industrial Capacitive Touch LCD Display Panel, 640x480 Resolution, 1000:1 Contrast, 178° Viewing Angle for Automation and Embedded Systems
6.5 Inch 640×480 Capacitive Touch LCD Panel
This high-performance 6.5-inch touch LCD panel (G065VN01_V221 from AUO) delivers exceptional clarity and reliability across diverse operating environments. With an extensive temperature range of -30°C to 80°C, it maintains consistent performance in both industrial and outdoor applications. It is designed for harsh environment.
Display Excellence
Featuring a 640×480 resolution with 1000:1 contrast ratio and 178-degree viewing angle, this panel provides sharp, vivid imagery from virtually any perspective. The LED backlight ensures energy-efficient operation with bright, clear visibility in all lighting conditions.
Advanced Touch Technology
Equipped with capacitive touch technology, the screen delivers high sensitivity and precise response for smooth navigation and data input. The anti-glare surface treatment enhances usability in brightly lit environments. It supports multi-touch, and compatible with Windows, Android and Linux.
Technical Specifications
| Attribute | Specification |
|---|---|
| Display Size | 6.5 Inches |
| Resolution | 640 × 480 |
| Aspect Ratio | 4:3 |
| Contrast Ratio | 1000:1 |
| Viewing Angle | 178 Degrees |
| Brightness | 800 Cd/m² typcially |
| Touch Technology | Capacitive Touch |
| Touch Area | 133.48 × 100.36mm |
| LCD Interface | LVDS |
| Touch Interface | USB, RS232 |
| Operating Temperature | -30°C to 80°C |
| Touch Controller | EETI |
| Compatibility | Windows, Android, Mac, Linux |
Key Features
Responsive capacitive touch technology
Wide operating temperature range
Energy-efficient LED backlight
Anti-glare surface treatment
CE/ROHS certified
Multi-platform compatibility
Applications
Ideal for interactive screen kits, industrial control panels, HMI panels, and Healthcare equipment. The durable construction and reliable performance make it suitable for high-traffic environments and demanding applications.
Customization Options
- Custom firmware for gloved-hand and wet-screen operation;
- Optical bonding technology available;
- Flush mounting customization;
- Front glass thickness and dimesnions can be designed as per specific requirements;
- It can be customized to be anti-uv for outdoor or semi-outdoor applications.
Ordering Information
Minimum Order Quantity: 50 pieces
Supply Capacity: 500 units per day
Delivery Time: 3-20 working days
Packaging: Carton box or wood case
Payment Terms: T/T
Support & Services
Comprehensive technical support including troubleshooting, software updates, hardware maintenance, and training resources. Our expert team ensures smooth integration and optimal performance for all your display requirements.
