17" PCAP Touch Screen Glass 2.9mm Thick with ILI2510 Controller
country of origin
China
Brand Name
LB
certificate
CE/ROHS
PRODUCT MODEL
LBCTP170030
MOQ
1 Pcs
unit price
to be determined
Packing
Carton Box or Wood Case
period for dispatch
3~20 working days
payment method
T/T
Supply Capacity
1000 pcs per day
Product Custom Attributes
Highlight
5:4 touchscreen projected capacitive
,17 Inch touchscreen projected capacitive
,10ms projected capacitive multi touch
Touch Points:
Up To 10 Points
Package:
Yes
Surface Treatment:
Anti-glare/Anti-fingerprint For Option
Aspect Ratio:
5:4
Touch Panel:
Multi Touch PCAP Screen
Application:
ATM.POS.Open Frame Machine ...etc
Thickness:
2.9±0.2mm
Response Time:
10ms
Product Description

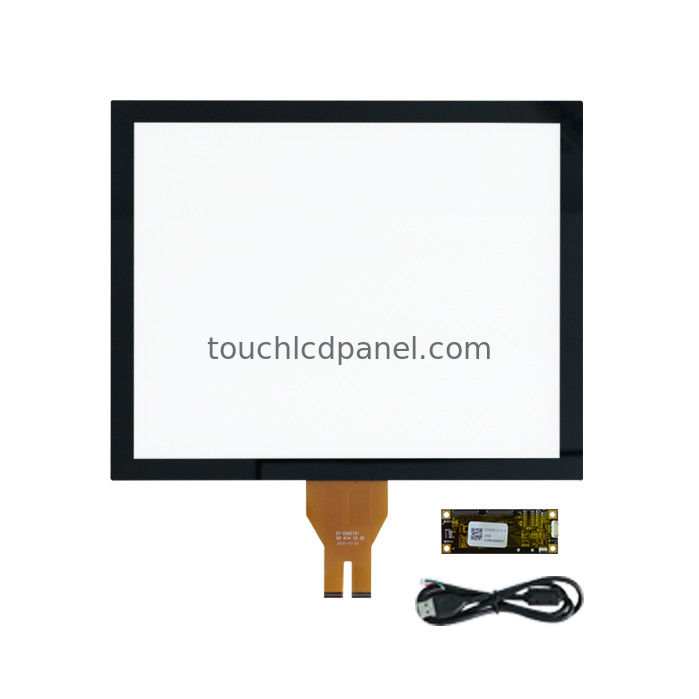

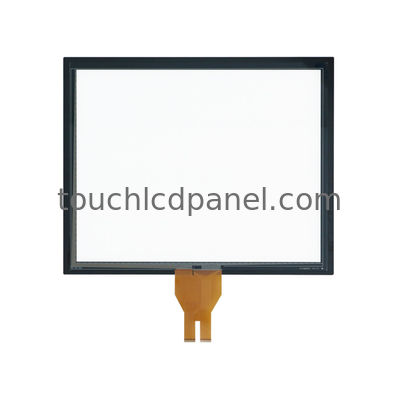

17" Black Bezel PCAP Touch Screen Glass With ILI2510 Touch Controller for 1280x1024 LCD Panel
Product Description
This 17" PCAP touch glass is an ITO glass touchscreen sensor laminated with tempered front glass featuring a black bezel. Designed for flush mounting, it supports multi-touch functionality and is compatible with 1280x1024 pixel 17-inch LCD panels including DV170E0M-N10, M170ETN01.1, G170ETN01.0, G170EG01, P170ETN01.0 and similar models.
The PCAP Touch Screen features a high-quality sensitive touch pad that delivers an exceptionally smooth and precise touch experience. Its high sensitivity allows easy navigation even with light touches, making it ideal for extended use applications.
The highly durable capacitive touch panel is designed to withstand heavy usage while maintaining reliable performance over time. With a thickness of 2.9 ±0.2mm and fast response time of 10ms, users can interact with the touch screen quickly and efficiently.
Key Features
- Product Name: PCAP Touch Screen
- Interface: Plug-and-play USB interface
- Transparency Rate: ≥85%
- Screen Size: 17.0 Inch
- Touch Resolution: 1280x1024
- Aspect Ratio: 5:4
- Glass-on-glass PCAP touch panel
Technical Specifications
| Application | ATM, POS, Open Frame Machine, etc. |
|---|---|
| Layers | G+G |
| Outline Dimension | 377*309mm |
| Touch Panel | Multi Touch PCAP Screen |
| Input | Capacitive Pen or Hand Writing |
| Viewing Area | 338*370mm |
| Touch Technology | Projected Capacitive Touch |
| Transparency Rate | ≥85% |
| Thickness | 2.9±0.2mm |
Applications
The LB LBCTP170030 PCAP Touch Screen is a versatile solution suitable for various applications:
- Business environments: Retail stores, restaurants, and service industries for interactive displays and menus
- Educational settings: Classrooms and lecture halls for interactive presentations
- Public spaces: Museums and galleries for immersive exhibits
- Gaming and entertainment: Interactive experiences and creative applications
Customization Options
Available optional surface treatments include Anti-glare (AG) and anti-fingerprint (AF) coatings to reduce glare and improve visibility in bright environments.
Outline dimensions and glass thickness can be customized upon request. Contact us to discuss specific requirements for your application.
Frequently Asked Questions
Q: What is the brand name of this product?
A: The brand name is LB.
Q: What is the model number?
A: Model number is LBCTP170030.
Q: Where is this product manufactured?
A: Product origin is China.
Q: What certifications does this product have?
A: Certified with CE/ROHS.
Q: What is the minimum order quantity?
A: Minimum order is 1 piece.
Q: What are the packaging options?
A: Available in carton box or wood case packaging.
Q: What is the delivery time?
A: Delivery within 3-20 working days.
Q: What are the payment terms?
A: Payment by T/T transfer.
Q: What is the production capacity?
A: Supply capacity of 1000 pieces per day.
