15.6 Inch Projected Capacitive Touch Panel With Multi Touch ILITEK 2511 Touch Controller
country of origin
China
Brand Name
LB
certificate
ROHS
PRODUCT MODEL
LBCTP156010
MOQ
50 Pcs
unit price
to be determined
Packing
Carton Box or Wood Case
period for dispatch
3~20 working days
payment method
T/T
Supply Capacity
2000pcs per day
Product Custom Attributes
Highlight
15.6in capacitive touch panel
,Projected capacitive touch panel
,ILI2511 projected capacitive touch panel
Touch Resolution:
1920x1080, 1366x768
Transparency Rate:
≥85%
Input:
Capacitive Pen Or Hand Writing
Thickness:
3.9±0.2mm
Touch Controller:
ILI2511
Touch Panel:
Multi Touch PCAP Screen
Touch Warranty:
1 Year
Touch Technology:
Projected Capacitive Touch
Cover Glass Thickness:
3mm
Surface Hardness:
6H
Product Description

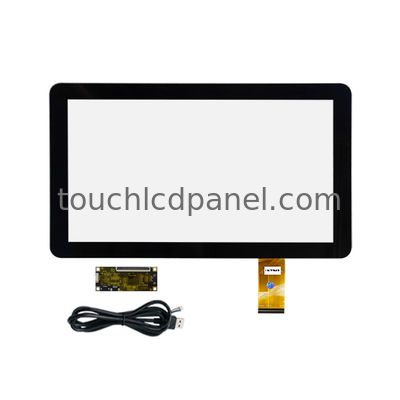

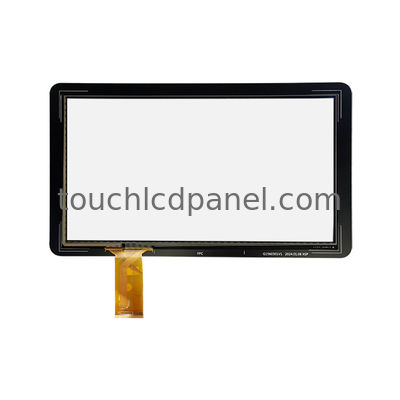

15.6-Inch Projected Capacitive Touch Panel
Multi-touch technology with ILITEK 2511 touch controller for highly responsive and accurate touch experience.
Product Overview
This advanced projected capacitive touch screen features plug-and-play USB connectivity, delivering smooth, precise, and reliable multi-touch control. The G+G (glass-to-glass) layered structure ensures exceptional durability and scratch resistance.
Key Features
- 15.6-inch projected capacitive touch screen
- ILITEK ILI2511 touch controller with USB interface
- 3mm tempered cover glass with GG layers
- Flush mount design
- Plug-and-play installation
- Multi-touch capability
- 1-year touch warranty
Technical Specifications
| Aspect Ratio | 16:9 |
| Screen Size | 15.6 Inch |
| Viewing Area | 344.8 × 194.2mm |
| Thickness | 3.9±0.2mm |
| Transparency Rate | ≥85% |
| Touch Points | Up to 10 points |
| Input Method | Capacitive pen or hand writing |
| Surface Treatment | Anti-glare or AF (optional) |
| Cover Lens | Tempered glass |
Applications
Ideal for various industrial and commercial applications requiring reliable, high-performance touch interfaces.
- ATM and POS systems
- Open frame machines
- Interactive kiosks
- Industrial control panels
- Medical equipment
- Gaming and entertainment systems
- Retail point-of-sale systems
Product Details: LB LBCTP156010
Minimum order: 1 piece | Price range: to be determined | Delivery: 3-20 working days | Supply capacity: 2000pcs per day | Payment: T/T accepted
Support & Services
Comprehensive technical support including installation assistance, calibration services, customization options, and system integration. Regular software updates ensure optimal performance and compatibility with evolving technology standards.
