19 Inch Flush Mount Multi Touch PCAP Screen With ILI2510 Controller Compatible With Windows Android Linux
country of origin
China
Brand Name
LB
certificate
CE/ROHS
PRODUCT MODEL
LBCTP190020
MOQ
50 Pcs
unit price
to be determined
Packing
Carton Box or Wood Case
period for dispatch
3~20 working days
payment method
T/T
Supply Capacity
1000pcs per day
Product Custom Attributes
Highlight
Flush Mount pcap multi touch
,19in pcap multi touch
,ILI2510 pcap touch monitor
Touch Panel:
Multi Touch PCAP Screen
Touch Controller:
ILI2510
Screen Size:
19.0 Inch
Othere Name:
Touch Glass
Touch Resolution:
1280x1024
Touch Warranty:
2 Years
Package:
Yes
Viewing Area:
376.82*301.56mm
Product Description

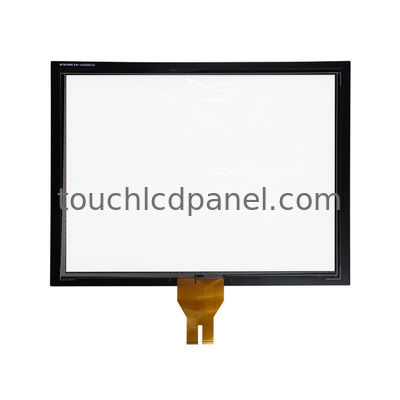

19-Inch Flush-Mount Multi Touch PCAP Screen
High-performance 19-inch capacitive touchscreen with ILI2510 controller, compatible with Windows, Android, and Linux systems. Features fast response time, durable tempered glass construction for flush mounting, and extended warranty options.
Key Features
- 2-year touch warranty
- Ultra-fast 10ms response time
- Durable tempered glass cover lens
- Slim 3.9±0.2mm thickness profile
- Projected capacitive (PCAP) touch technology
- ILI2510 touch controller
- G+G layer construction
- Multi-touch support (up to 10 points)
- Wide black bezel for flush mounting
- Electromagnetic touch system for precision
Technical Specifications
| Parameter | Specification |
|---|---|
| Model No. | LBCTP190020 |
| Screen Size | 19.0 Inch |
| Touch Resolution | 1280 x 1024 |
| Response Time | 10ms |
| Transparency Rate | ≥87% |
| Thickness | 3.9±0.2mm |
| Touch Points | Up to 10 points |
| Input Method | Capacitive pen or hand writing |
| Surface Treatment | Anti-glare or AF (optional) |
Applications
Ideal for control panels, gaming, entertainment, business, education, graphic design, engineering, medical imaging, interactive kiosks, and cutting-edge medical devices. The plug-and-play feature ensures easy integration across various platforms.
Support & Services
Comprehensive technical support including installation guidance, calibration services, repair, and maintenance. Access user manuals, driver downloads, and troubleshooting resources through our support channels.

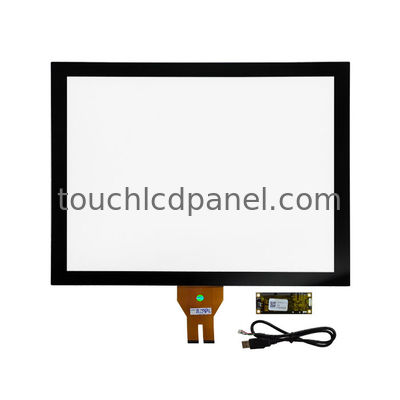

Package Includes: Capacitive touchscreen panel, touch controller PCBA, USB cable, and all necessary mounting hardware for flush installation.
