17 Inch PCAP Touch Screen Glass 1280x1024 with 3.9mm Thickness

Brand Name:	LB
Model Number:	LBCTP170031-8918V1
MOQ:	1pcs
Price:	To Be Determined
Packaging Details:	Carton Box Or Wood Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE/ROHS

Document:

Touch Controller:

ILI2510

Response Time:

<10ms

Outline Dimension:

359 (L) X 295 (W) X 3.9 (T) Mm

Touch Interface:

USB-HID, RS232 & IIC For Option

Resolution:

1280x1024pixels

Totol Thickness:

3.9mm

Bezel Width:

12.5(T)/12.5(B)/10.5(L)/10.5(R) Mm

Size:

17 Inches

Supply Ability:

500pcs Per Day

Highlight:

Industrial PCAP Touch Screen

Narrow Bezel PCAP Touch Screen

1280x1024 PCAP Touch Screen

Product Description

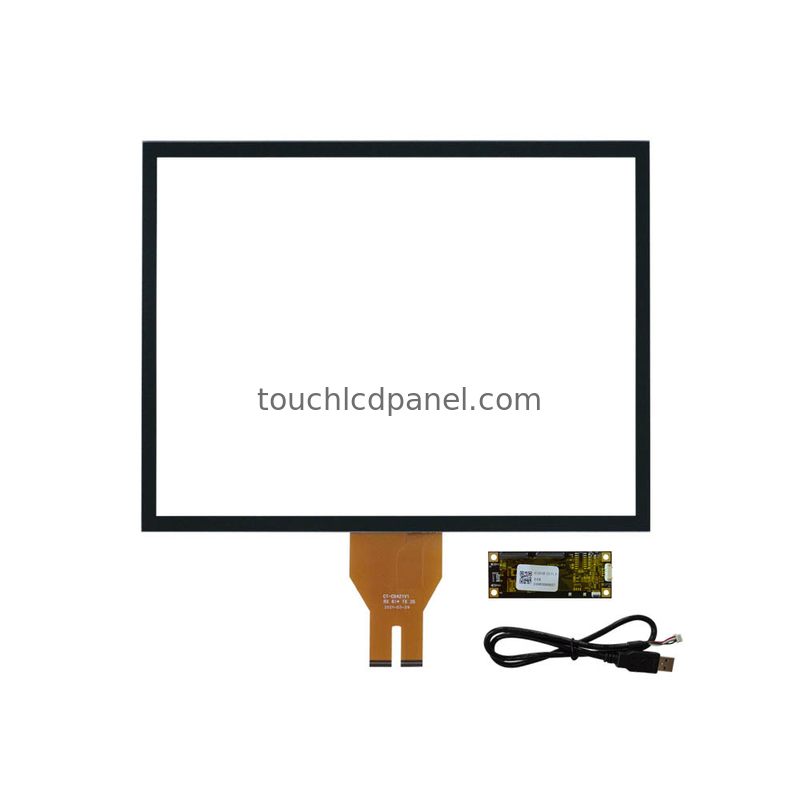

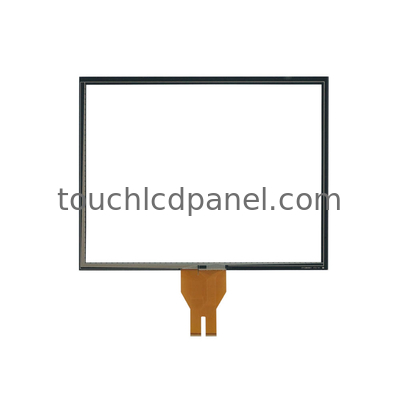

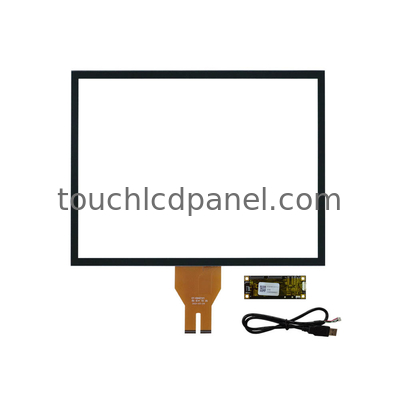

17" Narrow Bezel 1280x1024 PCAP Touch Screen Glass For Industrial Touchscreen Monitor

Product Description

This 17-inch narrow bezel touch glass works with a USB controller (ILITEK2510) for 1280x1024 Resolution LCD panel, compatible with models including DV170E0M-N10, DV170E0M-N20, DV170E0M-N30, G170ETN01.0, G170EG01 V1, P170ETN01.0, M170ETN01.0 and more.

Featuring a size of 17 inches and a viewing area measuring 338 x 270 mm, this PCAP Touch Screen has a total thickness of just 3.9mm, offering a sleek and modern design ideal for various industrial applications.

Equipped with the advanced ILI2510 touch controller, this screen delivers smooth and accurate touch responses with sensitivity for up to 10-point finger touch. Enjoy intuitive multitouch gestures including pinch-to-zoom, rotate, and swipe for efficient navigation.

Key Features

Product Name: 17-inch Narrow bezel PCAP Touch Screen
Size: 17 Inches with Outline Dimension 359 (L) x 295 (W) x 3.9 (T)
Bezel Width: 12.5(T)/12.5(B)/10.5(L)/10.5(R) Mm
Total Thickness: 3.9mm
Type: Glass On Glass PCAP Touch Technology
USB interface, plug-and-play on Windows and Android

Technical Specifications

Parameter	Value
Outline Dimension	359 (L) x 295 (W) x 3.9 (T)
Viewing Area	338 x 270 mm
Type	Glass On Glass PCAP Touch Technology
Touch Points	10 Points Finger Touch
Response Time	<10ms
Touch Controller	ILI2510
Size	17 Inches
Cover Glass Thickness	3mm
Aspect Ratio	5:4
Touch Interface	USB-HID, RS232 & IIC For Option
Bezel Color	Black

Applications

The LB PCAP Touch Screen (Model: LBCTP170031-8918V1) is a versatile solution suitable for various applications including:

Interactive displays
Digital signage
Kiosks
Gaming devices
Industrial control systems

With its 17-inch size and slim profile (359 x 295 x 3.9 mm), this high-performance touch screen is an excellent choice for projects requiring advanced touch technology.
