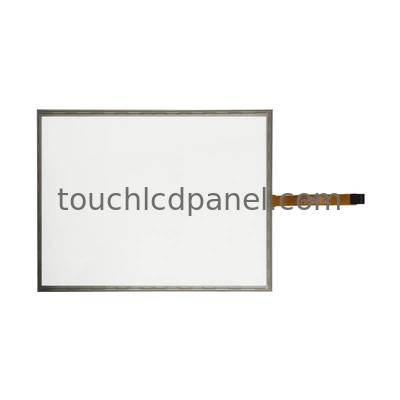

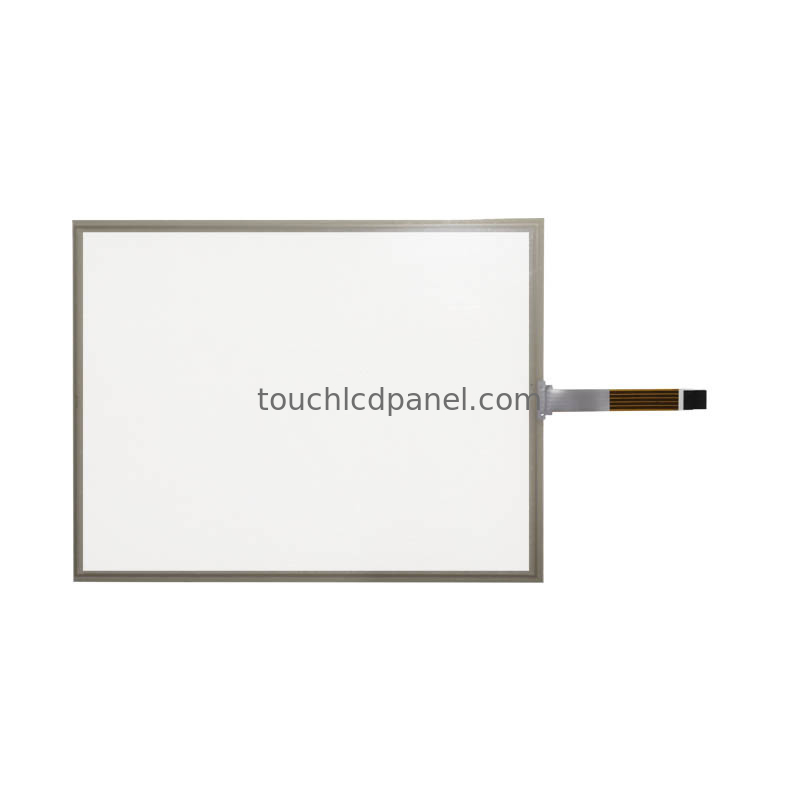

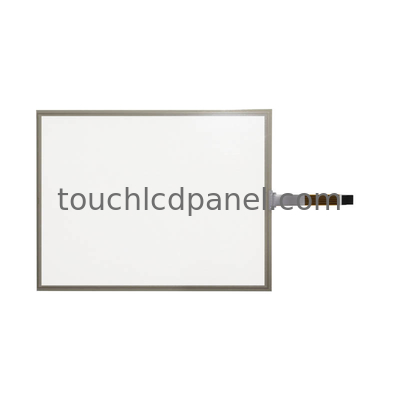

15 Inches 5-wire Resistive Touch Panel without Black Bezel for Medical and Industrial Equipment

Brand Name: LB
Model Number: LBR5W150010
MOQ: 30pcs
Price: To Be Determined
Packaging Details: Carton Box Or Wood Case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Certification:
CE/ROHS
Outline Dimension:
247.3x321.3x2.1mm
Layers:
ITO Film + ITO Glass
Touch Points:
Single Touch
Interface:
5-pin 2.54 Connector, EETI USB/COM Touch Controller For Option
Surface Hardness:
>3H
Storage Temperature:
-30℃ ~ 80℃
Operating Temperature:
-20℃ ~ 70℃
Lifetime:
1,000,000 Times Click Touch (R0.8 Pen Point)
Supply Ability:
500pcs Per Day
Product Description

15 Inches 5-wire Resistive Touch Panel without Black Bezel for Medical and Industrial Equipment

Product Description of 15 Inches 5-wire Resistive Touch Panel

LBR5W150010 is a 5 Wire Resistive Touch Panel, which is a cutting-edge Pressure Touch Panel that offers exceptional functionality and durability. With a Lifetime of 1,000,000 Times Click Touch using an R0.8 Pen Point, this Resistive Touch Panel is designed to withstand frequent use without compromising on performance.


Measuring at an Active Area of 304x228mm, this Resistive Touch Panel fits seamlessly into various devices and applications at 15 inches with 4:3 Aspect Ratio LCD panel, usually, the resolution is 1024x768.


One of the key advantages of this Pressure Touch Panel is its wide Operating Temperature range of -20℃ to 70℃, making it suitable for use in diverse environments and conditions. Additionally, the Storage Temperature range of -30℃ to 80℃ ensures that the panel remains functional even in extreme storage conditions.


Whether you need a reliable input solution for industrial machinery, interactive kiosks, medical devices, or other touch-enabled systems, the 5 Wire Resistive Touch Panel offers a robust and responsive touch experience.


Features of 15 Inches 5-wire Resistive Touch Panel

  • Product Name: 15 Inches 5-Wire Resistive Touch Panel
  • Resolution: 1024x768
  • Interface: 5-pin 2.54 connector, USB resistive touch controller for option
  • Life Time: 1,000,000 Times Click Touch
  • Black Bezel: no
  • EMI Immunity
  • Recommended for Industrial, Medical and Military applications

Technical Parameters of 15" 5-Wire RTP

Model Number LBR5W150010
Linearity <2.5%
Lifetime 1,000,000 Times Click Touch (R0.8 Pen Point)
Response Time <10ms
Operating Temperature -20℃ ~ 70℃
Surface Treatment Matte
Interface 5-pin 2.54 Connector, EETI USB/COM Touch Controller For Option
Operating Pressure <120g
Resolution 1024x768
Size 15 Inches
Touch Technology 5-wire Resistive Touch Technology

15 Inches 5-wire Resistive Touch Panel without Black Bezel for Medical and Industrial Equipment 0

Applications:

LB Resistive Touch Panel Model LBR5W150010 is a versatile product suitable for a wide range of application occasions and scenarios. Designed with ITO Film on ITO Glass 5-Wire Resistive Touch Panel technology, this touch panel offers reliable performance and durability. This touch panel offers precise and responsive touch control, making it ideal for various industries.


The LB Resistive Touch Panel features a single touch point and an aspect ratio of 4:3, making it suitable for various display applications and the active area of 304x228mm provides ample space for interaction.


Made in China, this touch panel is certified with CE/ROHS, ensuring high quality and compliance with international standards. The minimum order quantity is 30pcs.


The LB Resistive Touch Panel Model LBR5W150010 is a high-quality product that caters to diverse needs across industries. Whether used in retail displays, industrial control panels, interactive kiosks, medical devices, or military equipment, this touch panel delivers a seamless and intuitive user experience.
