10.4-inch Anti-vandal Capacitive Touch Panel Built with 3mm Tempered Cover Glass
All Category

Touch LCD Panel

LCD Panel

PCAP Touch Screen

Resistive Touch Panel

Explosion Proof Touch Overlay

Touchscreen Monitor

Tempered Glass

AD Board

Touch Controller
Contact Us
Miss. Lin
lily.lb@touchlcdpanel.com
86+ 188 0261 2095
wechat 86+ 188 0261 2095
Contact Now
name
  • name
  • name
  • name

10.4-inch Anti-vandal Capacitive Touch Panel Built with 3mm Tempered Cover Glass

Brand Name: LB
Model Number: LBCTP104030-8125V1
MOQ: 50pcs
Price: To Be Determined
Packaging Details: Carton Box
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Certification:
CE/ROHS
Transmittance:
>85%
Total Thickness:
3.9nn
Touch Controller:
ILI2511
Surface Hardness:
>6H
Interface Type:
USB
Layers:
Tempered Glass On ITO Touch Sensor Glass
Bezel:
No Color
Touch Points:
10-point Finger Touch
Supply Ability:
1000pcs Per Day
Highlight:

10.4-inch PCAP touch screen

,

anti-vandal capacitive touch panel

,

3mm tempered glass touch screen

Product Description

10.4-inch Anti-vandal Capacitive Touch Panel Built with 3mm Tempered Cover Glass

Product Description of 10.4" Anti-vandal Touch Panel:

The PCAP Touch Screen LBCTP104030-8125V1 is a cutting-edge product that combines the innovative technology of a Capacitive Touch Screen Sensor with a tempered cover glass, which is driven by ILITEK Touch Controller (ILI2511). It commucates with the mainboard via USB interface. With a total thickness of 3.9mm, this touch screen overlay offers a sleek and slim design that is suitable for various applications.


Measuring at 212.45x161mm, the viewing area of the PCAP Touch Screen matches 10.4 inches LCD panel with 1024x768 and 800x600 Resolution. It is ideal for tasks that require precision and accuracy. Whether it is for gaming, digital signage, or industrial control, the generous viewing area ensures a comfortable and engaging user experience.


When it comes to durability, the PCAP Touch Screen does not disappoint. With a surface hardness of greater than 6H, this touch screen is highly resistant to scratches, ensuring long-lasting clarity and functionality even with frequent use. The robust construction makes it suitable for demanding environments where durability is crucial.


The outline dimension of the PCAP Touch Screen is 225.3x175.5mm, almost the same with most 10.4" LCD panels. Whether it is used in kiosks, interactive displays, or medical equipment, the flexible size of the touch screen allows for seamless integration and installation.

Features of 10.4" Anti-vandal Touch Panel:

  • Product Name: 10.4" PCAP Touch Screen Overlay
  • Touch Points: 10-point Finger Touch
  • Touch Controller: ILI2511, USB interface, plug-and-play
  • Tempered glass, 3mm thickness, surface hardness is greater than 6H, anti-scratches and anti-vandal.

Technical Parameters of 10.4" Anti-vandal Touch Panel:

Technical Parameter Details
Touch Controller ILI2511
Touch Points 10-point Finger Touch
Total Thickness 3.9mm
Bezel No Color
OS Compatibility Windows, Android, Linux
Outline Dimension 225.3x175.5mm
Resolution 1024x768, 800x600
Viewing Area 212.45x161mm
Item Multi-touch Overlay
Transmittance >85%

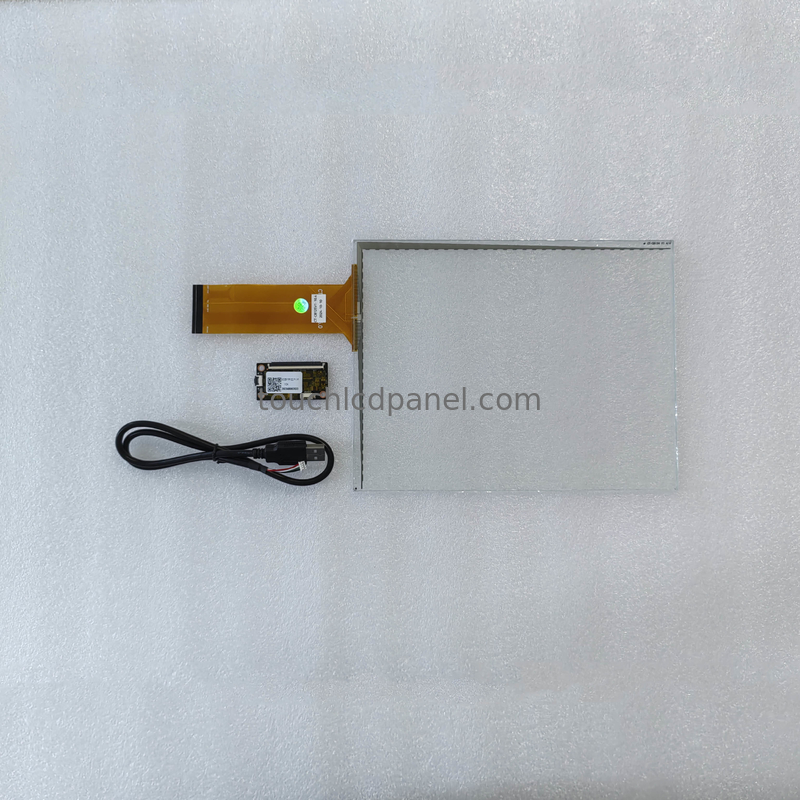

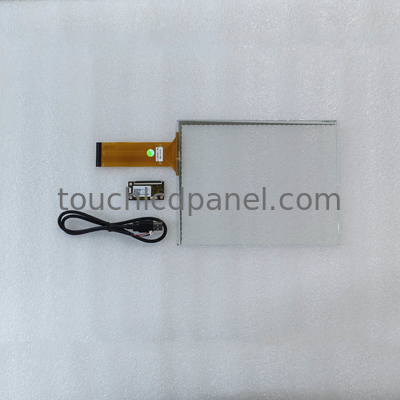

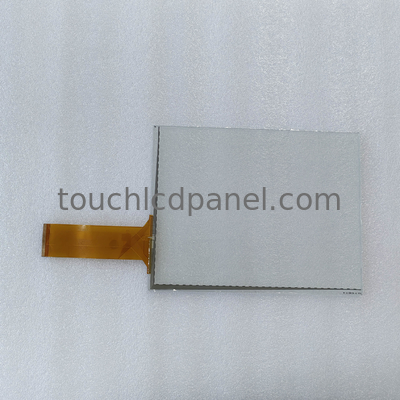

10.4-inch Anti-vandal Capacitive Touch Panel Built with 3mm Tempered Cover Glass 0


10.4-inch Anti-vandal Capacitive Touch Panel Built with 3mm Tempered Cover Glass 1

Applications:

Product Application Occasions and Scenarios for LB PCAP Touch Screen (Model: LBCTP104030-8125V1):


The LB PCAP Touch Screen is a versatile and innovative product suitable for a wide range of applications due to its advanced features and functionality. With its multi-touch gesture screen technology, this touch screen offers a seamless and intuitive user experience, making it ideal for various industries and scenarios.


Whether used in retail environments for interactive displays, in industrial settings for control panels, or in educational institutions for interactive learning, the LB PCAP Touch Screen delivers exceptional performance and durability. Its 10.4" size and outline dimension of 225.3x175.5mm make it a versatile choice for various applications.


Whether for interactive kiosks, gaming devices, medical equipment, or other applications, the LB PCAP Touch Screen is a reliable and high-performance solution for diverse needs.
