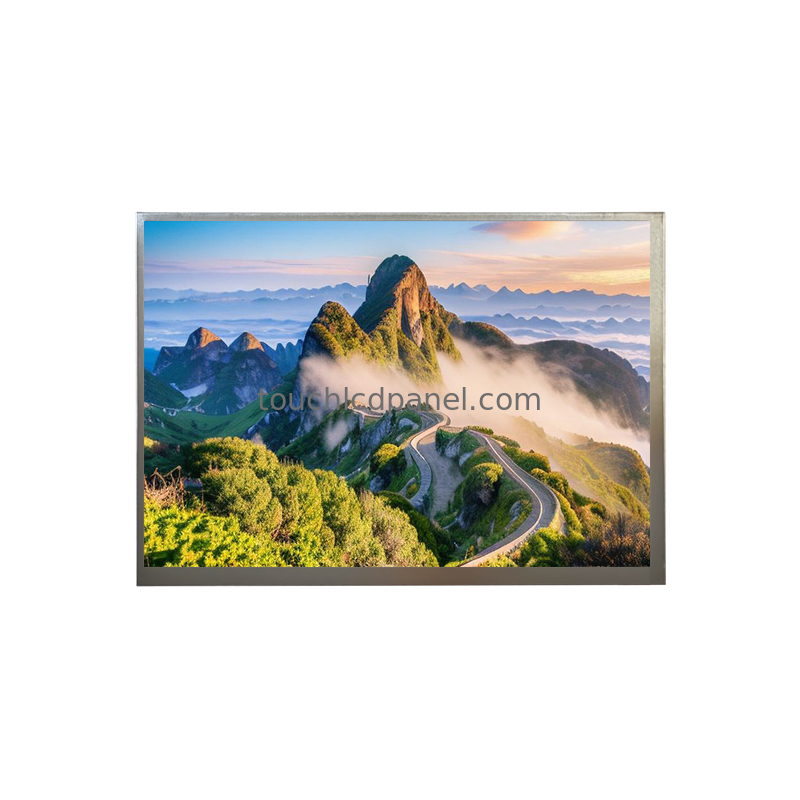

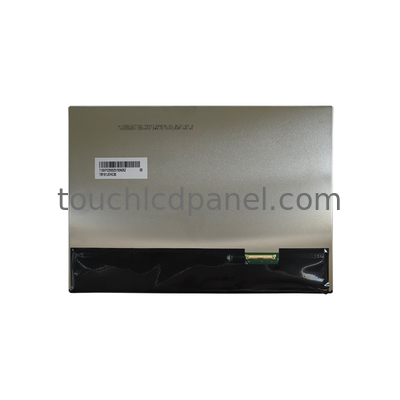

10.1" TIANMA TM101JDHG30 LCD Panel 1280x800 500nits 50,000h

Brand Name:	TIANMA
Model Number:	TM101JDHG30
MOQ:	30pcs
Price:	To Be Negotiated
Packaging Details:	Carton Box Or Wood Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

Green Product (RoHS & Halogen Free Product))

Size:

10.1"

Resolution:

1280x800

View Angles:

85/85/85/85

LCM (WxHxD):

231.22x150.60x4.30mm

Interface:

40-pin 1 Port LVDS

Luminance:

500cd/㎡

NTSC:

Operating Life Time:

50,000 Hours Typically

Supply Ability:

1000pcs Per Day

Highlight:

10.1 TIANMA LCD panel 1280x800

10.1 LCD panel 500nits brightness

TIANMA TM101JDHG30 LCD panel 50

000h

Product Description

10.1" TIANMA TM101JDHG30 LCD Panel

High-performance industrial-grade TFT-LCD panel with 1280×800 resolution, 500nits brightness, and 50,000-hour LED lifetime.

Key Specifications

Size	10.1"
Resolution	1280×800
View Angles	85/85/85/85
LCM Dimensions (W×H×D)	231.22×150.60×4.30mm
Interface	40-pin 1 Port LVDS
Luminance	500cd/㎡
NTSC	50%
Operating Lifetime	50,000 Hours Typically

Product Overview

The TM101JDHG30 is a rugged 10.1" industrial-grade TFT-LCD panel featuring a 1280×800 pixel resolution and 500cd/㎡ luminance. Designed for demanding environments, it offers exceptional reliability with an LED lifetime of 50,000 hours.

With dimensions of 231.22×150.60×4.30mm (W×H×D), this LCD panel combines a slim profile with robust construction. The 216.96×135.6mm active area delivers crisp, vibrant visuals with wide 85° viewing angles in all directions.

Engineered for industrial applications, the panel operates reliably in extreme temperatures from -20°C to 70°C, making it suitable for challenging environments. The 40-pin LVDS interface ensures stable connectivity with various control systems.

Technical Parameters

Viewing Direction: All Direction
Backlight: LED
Color Depth: 262K/16.7M
Active Area: 216.96×135.6mm
Warranty: 3 Years
Operating Temperature: -20°C to 70°C
Aspect Ratio: 16:10
NTSC: 50%
Interface: 40-pin 1 Port LVDS

Customization Options

This LCD panel can be enhanced with various options to meet specific application requirements:

Front glass integration
PCAP touch or Resistive touch options
Brightness customization up to 1000nits

For custom configurations or project-specific requirements, please contact our technical team to discuss your application needs.
