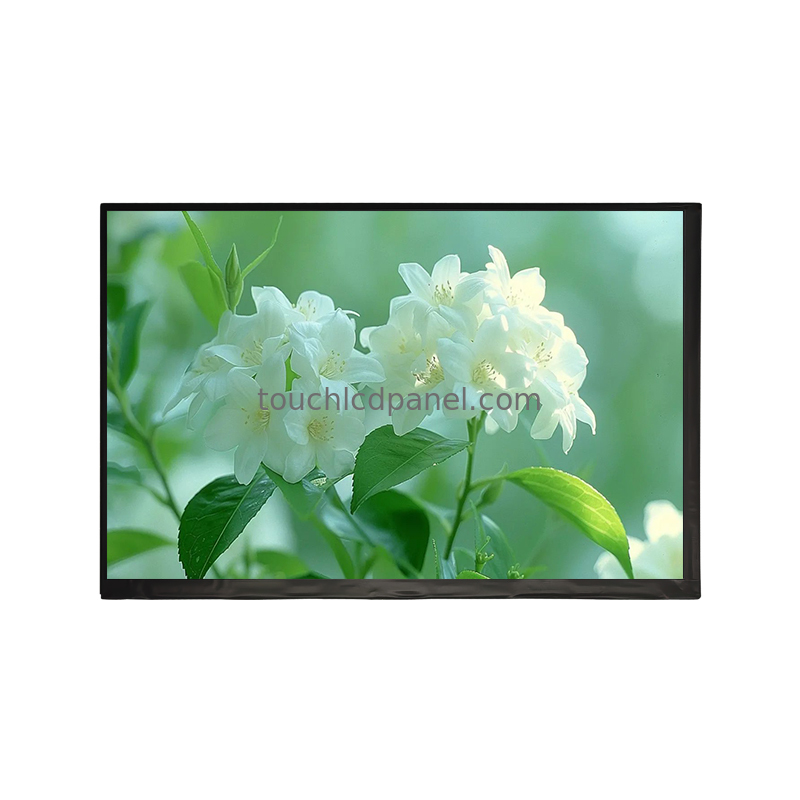

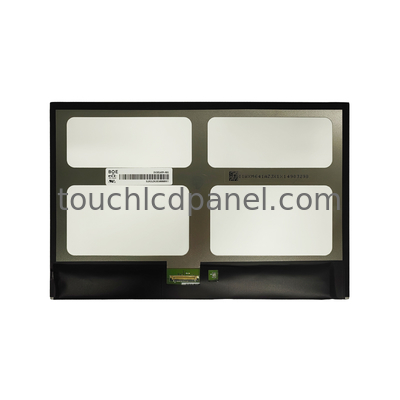

BOE 10.1" 1280x800 eDP LCD Panel GV101WXM-N81 250 Nits

Brand Name:	BOE
Model Number:	GV101WXM-N81
MOQ:	50pcs
Price:	To Be Negotiated
Packaging Details:	Carton Box Or Wood Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

Green Product (RoHS & Halogen Free Product))

Operating Temperature:

0~50℃

Resolution:

1280x800 Pixels

Display Color:

16.7M

Luminance:

250cd/㎡

Surface Treatment:

HC Glare

Active Area:

216.96x135.6mm

Panel Size:

10.1"

Storage Temperature:

-20~60℃

Supply Ability:

1000pcs Per Day

Highlight:

BOE 10.1 inch eDP LCD panel

GV101WXM-N81 LCD display

1280x800 resolution LCD panel

Product Description

BOE 10.1" 1280x800 eDP Interface LCD Panel GV101WXM-N81 with Brightness of 250 Nits

Product Specifications

Attribute	Value
Operating Temperature	0~50℃
Resolution	1280x800 Pixels
Display Color	16.7M
Luminance	250cd/㎡
Surface Treatment	HC Glare
Active Area	216.96x135.6mm
Panel Size	10.1"
Storage Temperature	-20~60℃

Product Overview

The GV101WXM-N81 is a high-performance 10.1" LCD panel from BOE featuring 1280x800 resolution, eDP interface, and 250 nits brightness. This original A-grade panel offers wide viewing angles and HC glare surface treatment, with optional multi-touch functionality.

The active display area measures 216.96x135.6mm, delivering vibrant, detailed imagery with effective pixel utilization. With compact outline dimensions of 228.3x149.05mm, this panel provides an efficient display solution for various applications.

Featuring an eDP interface, the panel ensures seamless connectivity and smooth data transmission for high-quality image display without lag or distortion. The 250cd/㎡ luminance delivers bright, vivid colors with exceptional clarity for photos, videos, and graphics.

Key Features

1 Lane eDP1.2 Interface for high-speed data transmission
Thin and lightweight design for versatile integration
Displays 16.7M colors (Hi FRC) for rich, accurate color reproduction
250 nits brightness with low reflection and wide viewing angle (85/85/85/85 Deg.)
3.3V logic power and 12V backlight LED power requirements
RoHS Compliant for environmental safety
Optional touch function available

Technical Parameters

Outline	228.3x149.05mm
Color Gamut	50%
Operating Temperature	0~50℃
Luminance	250cd/㎡
Viewing Angle	85/85/85/85 Deg.
LED Lifetime	15,000 hours minimum
Panel Size	10.1"
Backlight Type	LED
Storage Temperature	-20~60℃
Resolution	1280x800 Pixels
