BOE 21.5" LCD Panel 1920x1080 Full HD 250 Nits 30,000 Hours

Brand Name:	BOE
Model Number:	HR215WU1-120
MOQ:	10pcs
Price:	To Be Negotiated
Packaging Details:	Carton Box Or Wood Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

RoHS / TCO 6.0 ES6.0 Compliant

Viewing Angle:

89/89/89/89 Degrees

Dimentional Outline:

495.6 X 292.2 X 10.7 Mm

LED Lifetime:

30,000 Hours

Back-light:

Lower Side 1-LED Light Bar Type

Weight:

1900 G

Aspect Ratio:

Surface Treatment:

Anti-glare, 3H

Display Colors:

16.7M

Supply Ability:

1000pcs Per Day

Highlight:

BOE 21.5 inch LCD panel

Full HD LCD panel 250 nits

LCD panel with 30000 hours lifespan

Product Description

21.5" LCD Panel BOE HR215WU1-120 Full HD 1920x1080 Pixels LVDS Interface 250 Nits

Product Description

The HR215WU1-120 is a TFT-LCD panel from BOE featuring Full HD resolution (1920x1080 pixels), 250 nits brightness, wide 89/89/89/89 degree viewing angles, and LVDS interface.

This LCD panel features a lower side 1-LED light bar backlight for consistent, energy-efficient illumination. The 476.64 × 268.11 mm active area delivers vibrant visuals with 16.7 million colors for lifelike color reproduction. The 30,000-hour LED lifetime ensures long-term reliability for continuous operation in professional and entertainment applications.

Key Features

LVDS Interface with 14ms typical response time
Lower Side 1-LED Light Bar Type backlight
Normally Black display mode
1900g weight with anti-glare 3H surface treatment
250 nits luminance
Full HD 1920×1080 resolution
30,000-hour LED lifespan

Technical Specifications

Active Area	476.64 × 268.11 mm
Display Mode	Normally Black
Size	21.5 Inch (diagonal)
Aspect Ratio	16:9
Weight	1900g
Surface Treatment	Anti-glare, 3H hardness
Response Time	14ms
Power Consumption	16.42 Watt
Refresh Rate	60 Hz
Resolution	1920 × 1080 pixels

Recommended Applications

Desktop PC and workstation displays
Embedded monitors for standalone systems
Control system display terminals
Process controller monitors

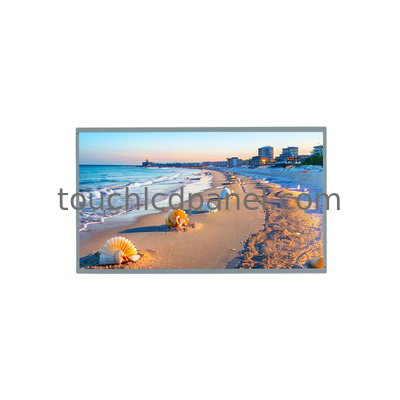

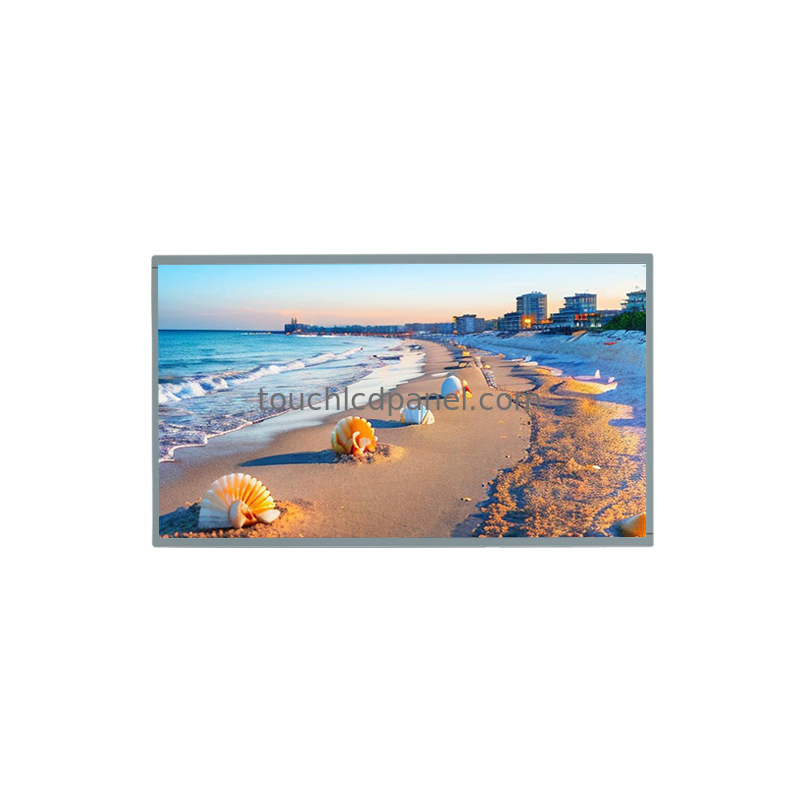

BOE 21.5" LCD Panel 1920x1080 Full HD 250 Nits 30,000 Hours 1
