PCAP Touch Screen

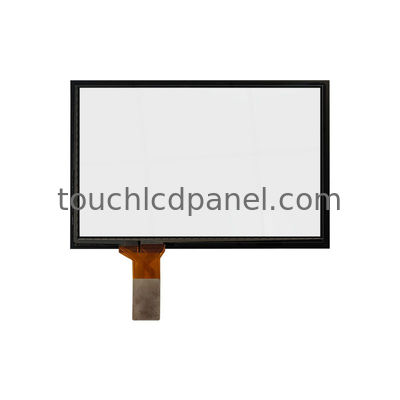

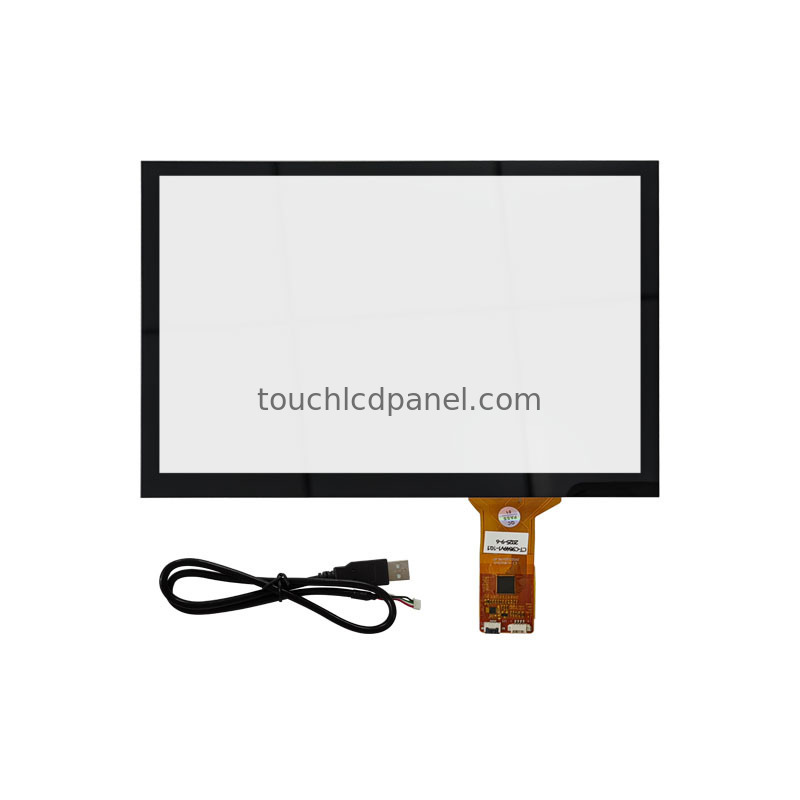

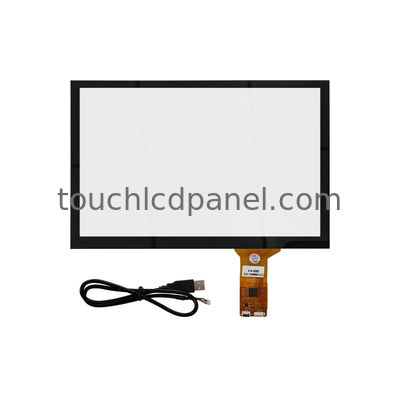

10.1" GT928 USB Touch Panel 1280x800 Resolution 2.0mm Thickness

All Category

Touch Controller

Miss. Lin

lily.lb@touchlcdpanel.com

86+ 188 0261 2095

86+ 188 0261 2095

Contact Now

10.1" GT928 USB Touch Panel 1280x800 Resolution 2.0mm Thickness

Brand Name:	LB
Model Number:	LBCTP101140-9849V1
MOQ:	100pcs
Price:	To Be Determined
Packaging Details:	Carton Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE/ROHS

Hardness:

Resolution:

1280x800, 1920x1200

Structure:

CTP(Glass+Glass)

Touch Points:

Multi-touch

Transparency:

Outline:

233.53x153.95mm

Viewing Area:

216.96x135.6mm

Touch Panel Thickness:

2.0mm

Supply Ability:

500pcs Per Day

Highlight:

10.1 inch PCAP touch screen

GT928 USB touch panel

216.96x135.6mm viewing area touchscreen

Product Description

10.1" GT928 USB Interface Touch Panel for Indoor Touchscreen Control Panels

Product Overview

The PCAP Touch Screen is a versatile and advanced touch screen solution offering smooth, responsive touch experience. This 10.1" touch screen features precise touch input, making it ideal for various applications.

Key Features

Product Name: PCAP Touch Screen
Touch Controller: GT928
Interface: USB/IIC
Outline: 233.53x153.95mm
Touch Panel Thickness: 2.0mm
Aspect Ratio: 16:10

Technical Specifications

Interface	USB/IIC
Touch Points	Multi-touch
Size	10.1"
Resolution	1280x800, 1920x1200
Top Glass Thickness	1.1mm
Touch Controller	GT928
Viewing Area	216.96x135.6mm
Transparency	≥85%
Hardness	≥6H
Bezel Color	Black

Applications

This versatile touchscreen monitor is suitable for various applications including:

Retail environments and digital signage
Educational institutions and interactive learning
Corporate settings and presentations
Industrial control panels
Interactive kiosks in public spaces

The product features chemically tempered glass for durability and offers crisp visuals with resolution options of 1280x800 and 1920x1200. CE/ROHS certified with a minimum order quantity of 100pcs.
