15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment

Brand Name:	LB
Model Number:	LBCTP1569880
MOQ:	100pcs
Price:	To Be Determined
Packaging Details:	Carton Box
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

Document:

Size:

15.6''

Product:

PCAP Touchscreen Overlay

Surface Treatment:

Anti-glare

Touch Controller:

ILITEK 2511

Touch Points:

10-poits Finger Touch

Bezel Color:

Black

Bezel Width:

16mm Each Side

Total Thickness:

2.9mm

Transmittance:

Response Time:

10ms Typically

Supply Ability:

1000pcs Per Day

Highlight:

15.6-inch PCAP touchscreen overlay

16mm bezel touch screen

anti-glare PCAP touchscreen

Product Description

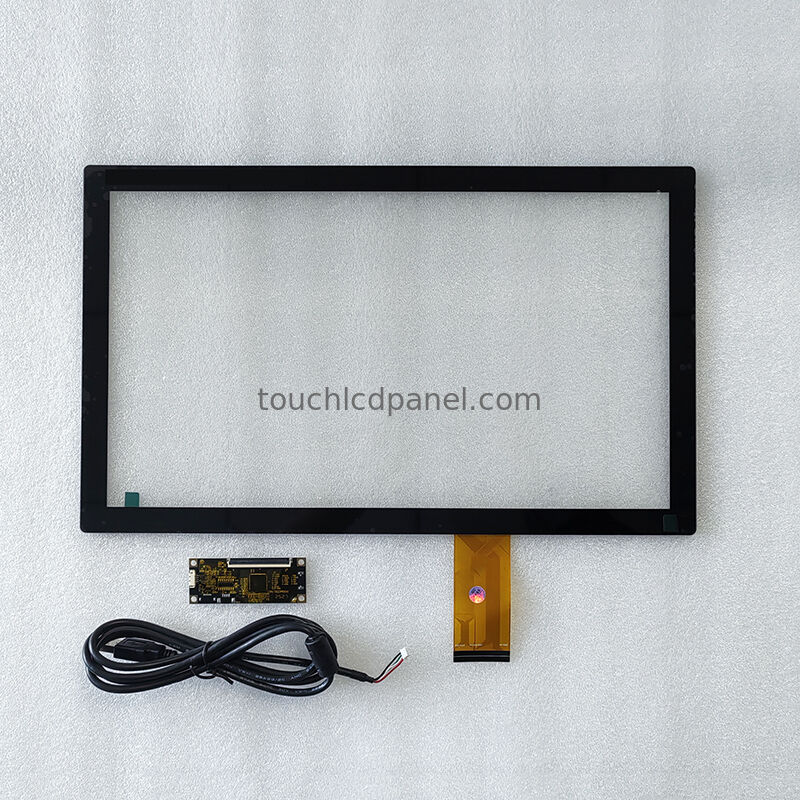

15.6-inch 16mm Bezel PCAP Touchscreen Overlay with Anti-glare Surface Treatment

Model No.: LBCTP1569880

Product Overview

This 15.6-inch PCAP Touchscreen Overlay features anti-glare tempered glass optically bonded to an ITO touch sensor glass, driven by an ILITEK2511 touch controller via USB interface. It supports multi-touch functionality with a fast 10ms response time and plug-and-play compatibility with Windows and Android systems.

The ILITEK 2511 touch controller enables accurate and smooth touch detection, supporting multiple simultaneous touch points. This transforms standard displays into multi-touch gesture screens, allowing intuitive interactions including pinch-to-zoom, swipe, rotate, and tap gestures.

Designed for user convenience and durability, this overlay features a slim profile and robust construction that provides reliable upgrades for existing monitors without compromising screen clarity or brightness.

Key Features

Narrow Black Bezel: 16mm bezel on each side in black, designed for flush mounting applications
Anti-glare Surface Treatment: Reduces environmental glare and improves viewing experience
Glass-on-Glass Construction: Front glass on sensor glass for enhanced durability
ILITEK Touch Controller: USB interface with plug-and-play functionality for Windows and Android
Multi-touch Support: 10-point finger touch capability
Fast Response: 10ms typical response time for smooth interactions

Technical Specifications

Product Type	PCAP Touchscreen Overlay
Touch Controller	ILITEK 2511
Touch Points	10-points Finger Touch
Layers	Front Glass On Sensor Glass
Transmittance	>86%
Surface Treatment	Anti-glare
Bezel Width	16mm Each Side
Front Glass Thickness	2mm
Total Thickness	2.9mm
Size	15.6-inch
Bezel Color	Black

Applications

Retail Environments: Ideal for point-of-sale (POS) systems, self-service kiosks, and digital signage. The robust construction and high touch accuracy make it superior to traditional resistive touch panels in high-traffic areas.

Healthcare: Provides hygienic, easy-to-clean surfaces suitable for patient monitoring systems and medical devices. Responsive touch capabilities ensure precise control and fast input for healthcare professionals.

Industrial Applications: Excellent replacement for resistive touch panels in control panels and machinery interfaces. Enhanced durability and multi-touch support improve operational efficiency in demanding environments.

The LBCTP1569880 PCAP Touch Screen is a versatile and reliable solution for upgrading from resistive touch panels to modern capacitive touchscreen technology, combining durability, performance, and ease of use in a sleek 15.6-inch design.
