1920 X 1080 15.6'' Touch LCD Panel With USB Multi Touch EDP Display Connection Interfaces

Brand Name: LB
Model Number: TDM156LB0101
MOQ: 50 Pcs
Price: 98USD/PCS ~ 128USD/PCS
Packaging Details: Carton Box or Wood Case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE/ROHS
Screen Size:
15.6''
Resolution:
1920*1080
Color:
Black Bezel
Interface:
USB
Installation Method:
Flush Mount
Display Interface:
EDP
Surface Hardness:
6
Touch Points:
10 Points Finger Touch
Supply Ability:
500pcs per day
Highlight:

1920 X 1080 Touch LCD Panel

,

15.6in Touch LCD Panel

,

Multi Touch 15.6 inch lcd panel

Product Description
15.6-Inch Touch LCD Panel with USB Multi-Touch and eDP Interface

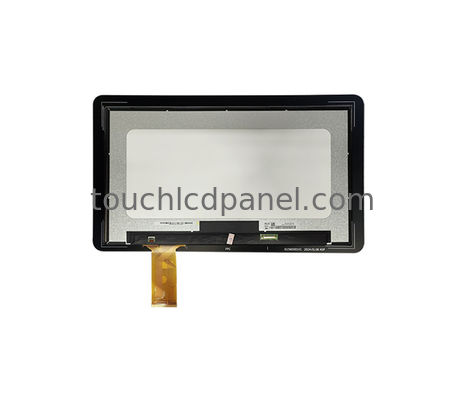

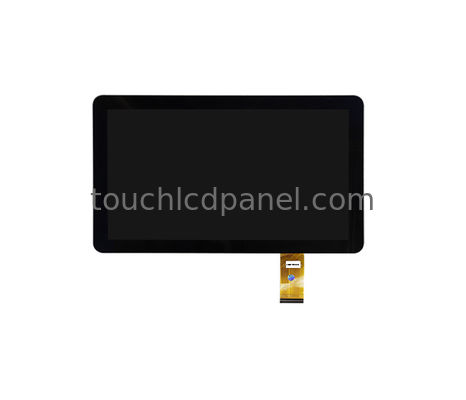

TDM156LB0101 is LB's standard 15.6-inch touch display module featuring a touch panel optically bonded on a TFT-LCD module with integrated USB touch controller.
Key Features
  • 15.6-inch diagonal widescreen display with versatile mounting options
  • Full HD 1920*1080 resolution with wide 89° viewing angles
  • eDP display interface and USB multi-touch controller
  • 10-point projective capacitive (PCAP) touch technology
  • Optical bonding with OCA eliminates air gaps for superior display quality
  • Plug-and-play compatibility with Windows and Android systems
Technical Specifications
Display Size 15.6 inches diagonal
Resolution 1920 * 1080 pixels (Full HD)
Viewing Angles 89°/89°/89°/89° (L/R/U/D)
Color Support 262K colors, 45% color gamut
Display Interface eDP 30-pin connector
Touch Interface USB (supports USB-A, USB-B, USB-C)
Touch Technology Projective Capacitive (PCAP) with ITO sensor
Touch Points 10-point multi-touch
Cover Glass Strengthened glass with 6H pencil hardness
Bonding Technology Optical bonding with OCA
Operating Temperature 0°C to 50°C
Mounting & Installation
Designed for flush mounting in enclosures, this display module features an extended touch outline for secure installation with frames. Compatible with adhesive tape or glue mounting methods. Supports both vertical and horizontal orientation.
Recommended Applications: Ideal for indoor devices requiring high-quality touch displays. Optimal performance in environments without strong direct light.
Optional Accessories
Available accessories include AD board with HDMI/VGA/DP/earphone ports, eDP cable, 12V/5A DC adaptor, USB cable, and adhesive tape for complete integration solutions.
