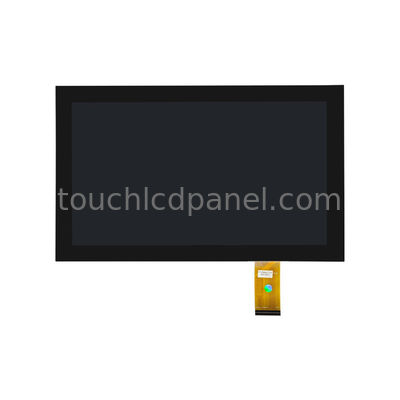

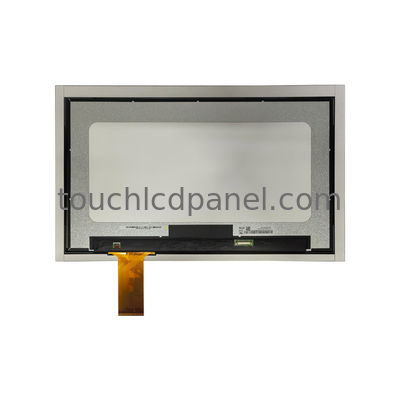

15.6 Inch Projected Capacitive Touch LCD Panel With 1080P EDP LCD USB Plug And Play Touch

Brand Name:	LB
Model Number:	TDM156LB0301
MOQ:	50pcs
Price:	to be decided
Packaging Details:	Carton Box or Wood Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE/ROHS

Size:

15.6 Inches

Touch Technology:

Capacitive Multi-touch

Outline Dimension:

387.1x240.1

Touch Area:

344.8*194.2mm

Resolution:

1920*1080

Aspect Ratio:

16:9

Compatibility:

Windows, Mac, Linux

Contrast Ratio:

700:1

LCD Interface:

EDP

Touch Interface:

USB

Surface Hardness:

Brightness:

250nits

Supply Ability:

500pcs per day

Highlight:

15.6in Touch LCD Panel

Touch LCD Panel Capacitive

1080P touch screen capacitive

Product Description

15.6-Inch Projected Capacitive Touch LCD Panel With 1080P EDP LCD And USB Plug-And-Play Touch

Product Description:

This is a 15.6-inch Full HD touch lcd module, which is TFT-LCD panel laminated with a PCAP touchscreen overlay. The touch is two-layer glass solution and the LCD panel is 1920x1080p. The touch is driven by USB interface and the LCD panel works via eDP. It is designed for flush-mounted touch control panels or all-in-one touchscreen coumputers for indoor applications.

The touch interface is USB, which is plug-and-play on Windows, Android and Linux operating systems. It supports multi touch. The top glass surface hardness is greater than 6H.

The interface of the LCD Panel is EDP. It is also known for its fast data transfer rates, ensuring smooth and lag-free performance.

With its sleek design and intuitive touch display controls, the Touch LCD Panel is perfect for a wide range of applications. Whether you're using it for gaming, video editing, or graphic design, this interactive monitor is sure to exceed your expectations.

Features:

Integrated Touch LCD Module: TFT-LCD module is optically bonded with a touchscreen overlay.
Flush-Mounting: the area that the front glass exceeds the touch-lcd module can be used for flush mounting.
Full HD: 1920x1080 resolution.
Multi-touch: the projected capactive touch supports multi-touch, up to 10-pioint finger touch.
Easy Installation: adhesive is laminated on the front glass, it is easy to laminate it into the enclosure.

Technical Parameters:

Size	15.6''
Touch Points	10 points
Touch Controller	ILITEK 2511, USB interface
Backlight Type	LED
Brightness	250 Cd/m2
Viewing Angle	178 Degrees
Resolution	1920*1080
Contrast Ratio	700:1
Operating Temperature	0~50 Degrees Celsius
LCD Interface	EDP

Customization:

Out touch screen display module is touchscreen overlay bonded with LCD panel.

You can customize the top glass for the outline dimension, color and logo, and IK rating, surface treatment for anti-glare, anti-reflective, and anti-finger print and etc, and anti-uv ink, and anti-IR glass for the outdoor situation.

You can customize the brightness for the indoor strong light or outdoor direct sunlight for readibility.

The operating temperature is another important factor for some appliacation.

You many also need gloved hand touch or touch with water.

Let LB help you customize your Touch LCD Panel to meet your specific needs.

Support and Services:

The Touch LCD Panel product technical support and services include:

Installation assistance
Troubleshooting and problem resolution
Software updates and upgrades
Repair and replacement services
Product training materials
Product documentation and manuals
Warranty information and claims
