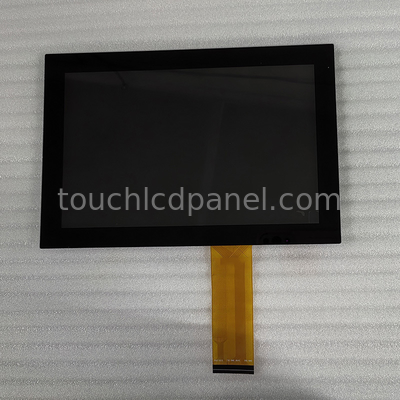

10.1" 1280x800 Multi-Touch LCD Panel with eDP Interface

Brand Name:	LB
Model Number:	TDM101LB0105A
MOQ:	50pcs
Price:	To Be Negotiated
Packaging Details:	Carton Box Or Wood Case
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Certification:

CE/ROHS

Bonding Technology:

Air-gap Bonding

Touch Points:

10 Points Finger Touch

Layers:

Top Glass - Touch Sensor - LCD Panel

Display Color:

16.7M

Viewing Direction:

85/85/85/85

Operating Temperature:

0-50 Degrees Celsius

Bezel:

Black

Touchscreen Overlay:

Multi-touch Glass

Supply Ability:

500pcs Per Day

Highlight:

10.1 inch multi-touch LCD panel

eDP interface touch screen

1280x800 resolution LCD panel

Product Description

10.1" 1280x800 Resolution Multi-Touch Display Module with eDP for LCD Panel GV101WXM-N81

The Touch Display Module TDM101LB0105A combines an eDP interface LCD panel GV101WXM-N81 with a projected capacitive touch panel, bonded using 1.0mm thickness 3M adhesive tape around the bezel. The design maintains an air gap between the touchscreen overlay and LCD display panel.

Featuring a wide viewing angle of 85/85/85/85 degrees, 1280x800 resolution, and eDP interface, this display delivers clear, vivid visuals from multiple perspectives with minimal distortion. Ideal for professional presentations or immersive home entertainment.

The multi-touch glass overlay supports up to 10-point finger touch, providing responsive, intuitive interaction for gaming, digital signage, and interactive presentations.

Key Features

eDP interface for LCD display panel
USB interface for touchscreen overlay
10-point multi-touch capability
Tape bonding construction
1280×800 pixel resolution

Technical Specifications

Attribute	Value
Bezel	Black
Operating Temperature	0-50°C
Touch Type	Capacitive
Touch Points	10 Points Finger Touch
Display Interface	EDP
Brightness	250 Cd/㎡
Display Color	16.7M
Item	Touch LCD Panel
Resolution	1280 × 800 Pixels
Viewing Direction	85/85/85/85

Applications

This versatile touch LCD panel is ideal for educational applications, interactive presentations, retail displays, interactive kiosks, digital signage, and gaming consoles. Its functionality as an interactive screen kit makes it suitable for diverse professional and commercial environments.
