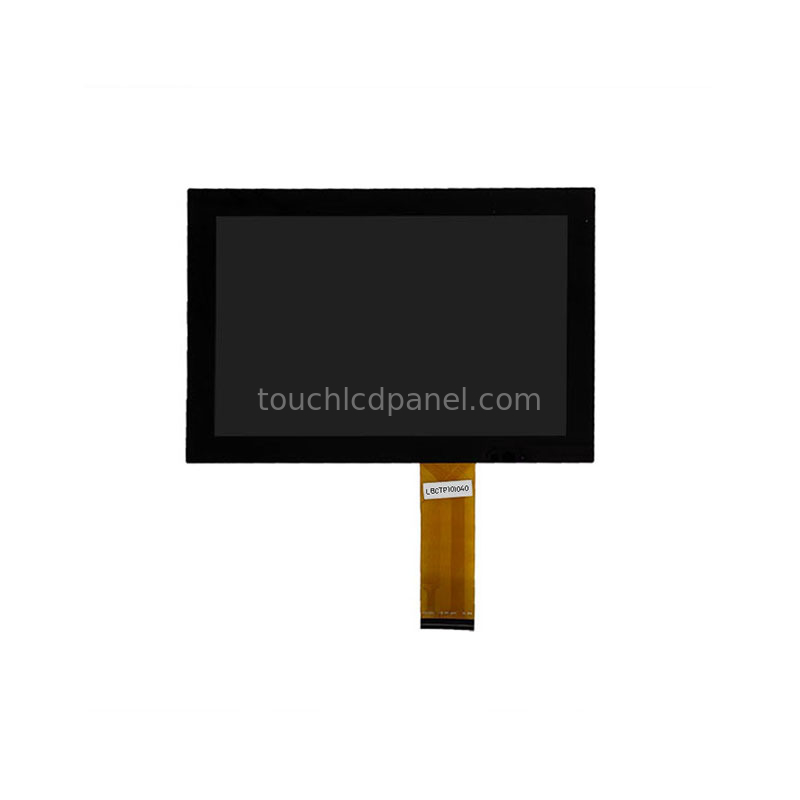

10.1" BOE eDP LCD Panel with USB Touch, 1280x800 Resolution
All Category

Touch LCD Panel

LCD Panel

PCAP Touch Screen

Resistive Touch Panel

Explosion Proof Touch Overlay

Touchscreen Monitor

Tempered Glass

AD Board

Touch Controller
Contact Us
Miss. Lin
lily.lb@touchlcdpanel.com
86+ 188 0261 2095
wechat 86+ 188 0261 2095
Contact Now
10.1
  • name
  • name

10.1" BOE eDP LCD Panel with USB Touch, 1280x800 Resolution

Brand Name: LB
Model Number: TDM101LB0105B
MOQ: 50pcs
Price: To Be Negotiated
Packaging Details: Carton Box Or Wood Case
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Certification:
CE/ROHS
LCD Module No.:
BOE GV101WXM-N81
Touch Interface:
USB
Touch Controller:
ILI2511
Viewing Direction:
85/85/85/85
Viewing Angles:
85/85/85/85
Bonding Technology:
Otpcial Bonding With OCA
Layers:
Top Glass - Touch Sensor - LCD Panel
Resolution:
1280 X 800 Pixels
Supply Ability:
300pcs Per Day
Product Description
10.1" eDP LCD Panel with USB Touch Optically Bonded, 1280x800 Resolution, ILITEK 2511 Touch Controller
Product Overview

The Touch LCD Panel consists of three main layers: the Top Glass layer, the Touch Sensor layer, and the LCD Panel layer. It features an ILITEK touch controller ILI2511 with USB interface, connected to the mainboard via USB cable. This layered structure enhances functionality and durability while providing a sensitive touch matrix with response time under 10ms for smooth user interaction.

Key Features
  • 10.1" 1280x800 BOE LCD Panel with 250 nits brightness and 85/85/85/85 viewing angles
  • ILI2511 G+G touchscreen overlay with multi-touch capability and plug-and-play USB interface
  • Optical Bonding with OCA technology for enhanced durability and clarity
  • Dual interface: eDP for display and USB for touch
  • 2-year warranty for quality assurance
Technical Specifications
Parameter Value
Viewing Angles 85/85/85/85
Touch Points 10
Touch Controller ILI2511
Touch Response <10ms
Bonding Technology Optical Bonding With OCA
Touch Interface USB
Resolution 1280 × 800 Pixels
Layers Top Glass - Touch Sensor - LCD Panel
Warranty 2 Years
Applications

This versatile HD Touch Digitizer Display is ideal for various commercial and industrial applications requiring responsive touch controls and clear visuals. With 16.7M display colors and wide viewing angles, it excels in:

  • Interactive kiosks and digital signage
  • Industrial control systems
  • Educational environments
  • Medical equipment interfaces
  • Retail POS systems
Tags:

pcap touch display

tft capacitive touch screen

lcd touch control panel
