12.1-inch 1280x800 Pixels Anti-glare Touch LCD Panel for Medical Equipment and Industrial Devices
Brand Name
LB
certificate
RoHS
PRODUCT MODEL
TDM121W9886AG
MOQ
50pcs
unit price
To Be Negotiated
Packing
Carton Box Or Wood Case
period for dispatch
3~20 Working Days
payment method
T/T
Supply Capacity
300pcs Per Day
Product Custom Attributes
Highlight
12.1-inch anti-glare touch LCD panel
,medical equipment touch LCD display
,industrial device touchscreen panel
Resolution:
1280x800 Pixels
Touch Panel Layers:
Glass On Glass
Viewing Angles:
89/89/89/89 Degrees (typ.)
Top Glass Thickness:
1.8mm
Bonding Technology:
Optical Bonding With LOCA
LCD Model No.:
G121EAN01.401 / G121EAN01.402
Support Color:
16.2M / 262K Colors
Display Interface:
1 Chanel LVDS
Product Description

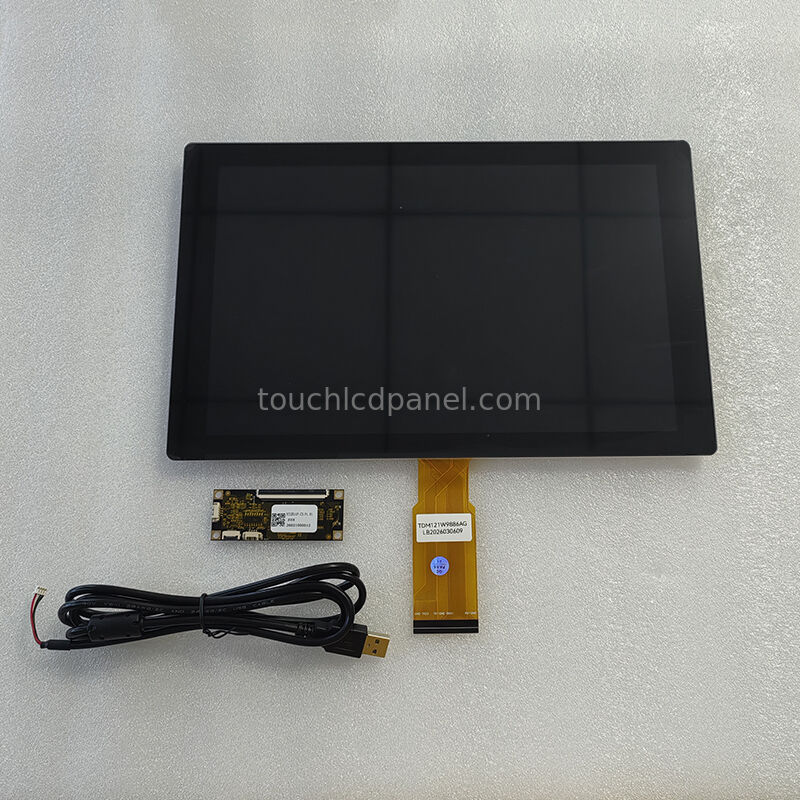

12.1-inch 1280x800 Anti-glare Touch LCD Panel
Advanced HD touch digitizer display designed for medical equipment and industrial devices, delivering exceptional visual performance with highly responsive touch capabilities.
Product Overview
This innovative touch LCD panel integrates state-of-the-art technology to provide an immersive and intuitive interactive experience. Featuring an LVDS display interface for efficient high-speed data transmission, the panel supports high-resolution imagery and smooth video playback with low power consumption.
Key Features
- 12.1-inch display with 1280x800 resolution for clear, sharp visuals
- Wide 89-degree viewing angles from all directions
- 10-point multi-touch capability with precise input detection
- Support for 16.2 million colors with vibrant, true-to-life imagery
- Glass-on-glass technology for enhanced touch sensitivity
- Optical bonding with LOCA for reduced reflections and enhanced durability
- Versatile connectivity with USB/I2C/RS232 interfaces
- 1.8mm top glass thickness for durable protection
Technical Specifications
| Parameter | Specification |
|---|---|
| Touch Controller | ILITEK |
| Aspect Ratio | 16:10 |
| Touch Points | 10 Points Finger |
| Operating Temperature | -20~70 ℃ |
| Touch Panel Layers | Glass On Glass |
| Top Glass Thickness | 1.8mm |
| Bonding Technology | Optical Bonding With LOCA |
| Resolution | 1280x800 Pixels |
| Display Interface | LVDS |
| Contrast Ratio | 1000 (typ.) |
Applications
This versatile touch LCD panel is engineered for demanding environments across multiple industries:
Industrial Automation
Control rooms, machinery operation, and monitoring systems
Medical Equipment
Diagnostic equipment, patient monitoring systems, and digital interfaces
Commercial & Retail
Interactive kiosks, point-of-sale systems, and self-service terminals
Automotive & Transportation
Navigation systems, infotainment units, and control panels
Product Details
Model: LB TDM121W9886AG | LCD Models: G121EAN01.401, G121EAN01.402 | Brand: AUO TFT LCD
Certification: RoHS Compliant | Supply Ability: 300pcs per day | Minimum Order: 50pcs
